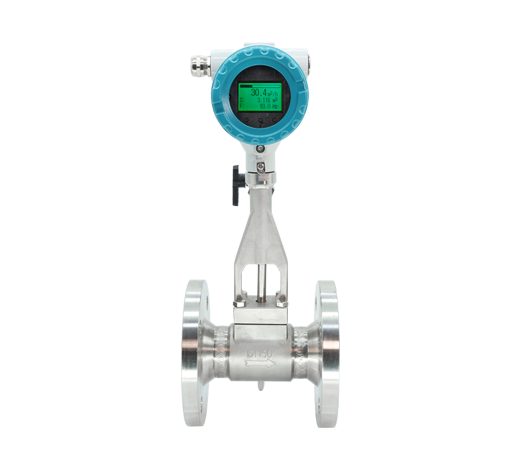

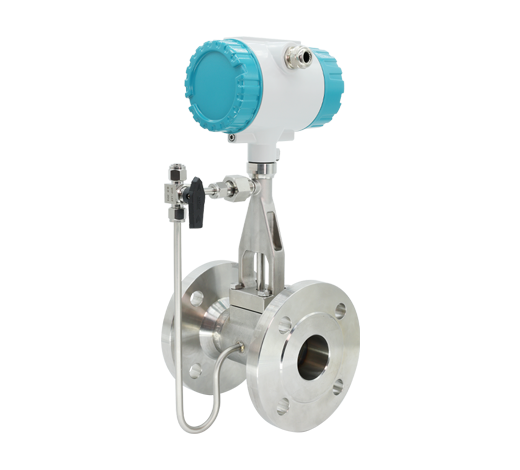

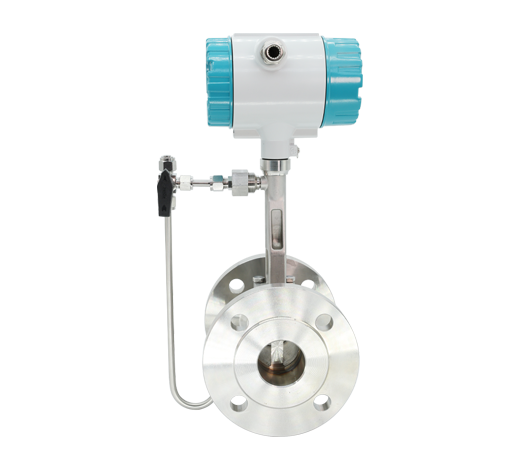

| Metten Medium | Flüssigens, gas, stoom |
| Medium Temp | -40℃~+200℃; -40℃~+280℃; 40℃~+350℃ |
| Nominale druk | 1.6MPa; 2.5MPa; 4.0MPa (Oare druk kin oanpast wurde, rieplachtsje leveransier nedich) |
| Accuracy | 1,0% (flens), 1,5% (ynfoegje) |
| Mjitberik ratio | 1:10 (Standert airconditioning as referinsje) 1:15 (Flüssich) |
| Flow Range | Liquid: 0.4-7.0m/s; Gas: 4.0-60.0m/s; Steam: 5.0-70.0m/s |
| Spesifikaasjes | DN15-DN300(flens), DN80-DN2000(ynfoegje), DN15-DN100(thread), DN15-DN300(wafer), DN15-DN100(sanitêr) |
| Kommunikaasje | RS485 Modbus, HART |
| Materiaal | SS304 (standert), SS316 (opsjoneel) |
| Druk Loss Coefficient | Cd≤2.6 |
| Vibration Acceleration tastien | ≤0.2g |
| IEP ATEX | II 1G Ex ia IIC T5 Ga |
| Ambient Condition | Ambient Temp: -40 ℃ -65 ℃ (Net-eksploazjebestindige side); -20 ℃ -55 ℃ (Eksploazjebestindige side) Relative Feuchte: ≤85% Druk: 86kPa-106kPa |
| Power Supply | 12-24V/DC of 3.6V batterij oandreaun |
| Sinjaal útfier | Pulsfrekwinsjesinjaal 2-3000Hz, leech nivo≤1V, heech nivo≥6V |
| Twa-wire systeem 4-20 sinjaal (isolearre útfier), Load≤500 |
| Kaliber (mm) | Binnendiameter D1(mm) | Lengte L (mm) | Flens bûtendiameter D3(mm) | Sintrale diameter fan bouten Hole B(mm) | Flensdikte C(mm) | Boltgatdiameter D(mm) | Screw Quantity N |
| 25 | 25 | 170 | 115 | 85 | 16 | 14 | 4 |
| 32 | 32 | 170 | 140 | 100 | 16 | 18 | 4 |
| 40 | 40 | 190 | 150 | 110 | 16 | 18 | 4 |
| 50 | 50 | 190 | 165 | 125 | 18 | 18 | 4 |
| 65 | 65 | 220 | 185 | 145 | 18 | 18 | 4 |
| 80 | 80 | 220 | 200 | 160 | 20 | 18 | 8 |
| 100 | 100 | 240 | 220 | 180 | 20 | 18 | 8 |
| 125 | 125 | 260 | 250 | 210 | 22 | 18 | 8 |
| 150 | 150 | 280 | 285 | 240 | 22 | 22 | 8 |
| 200 | 200 | 300 | 340 | 295 | 24 | 22 | 12 |
| 250 | 250 | 360 | 405 | 355 | 26 | 26 | 12 |
| 300 | 300 | 400 | 460 | 410 | 28 | 26 | 12 |
| Grutte (mm) | Liquid (Referinsjemedium: normale temperatuer wetter, m³/h) | Gas (Referinsjemedium: 20 ℃, 101325pa betingst lucht, m³/h) | ||
| Standert | Utwreide | Standert | Utwreide | |
| 15 | 0.8~6 | 0.5~8 | 6~40 | 5~50 |
| 20 | 1~8 | 0.5~12 | 8~50 | 6~60 |
| 25 | 1.5~12 | 0.8~16 | 10~80 | 8~120 |
| 40 | 2.5~30 | 2~40 | 25~200 | 20~300 |
| 50 | 3~50 | 2.5~60 | 30~300 | 25~500 |
| 65 | 5~80 | 4~100 | 50~500 | 40~800 |
| 80 | 8~120 | 6~160 | 80~800 | 60~1200 |
| 100 | 12~200 | 8~250 | 120~1200 | 100~2000 |
| 125 | 20~300 | 12~400 | 160~1600 | 150~3000 |
| 150 | 30~400 | 18~600 | 250~2500 | 200~4000 |
| 200 | 50~800 | 30~1200 | 400~4000 | 350~8000 |
| 250 | 80~1200 | 40~1600 | 600~6000 | 500~12000 |
| 300 | 100~1600 | 60~2500 | 1000~10000 | 600~16000 |
| 400 | 200~3000 | 120~5000 | 1600~16000 | 1000~25000 |
| 500 | 300~5000 | 200~8000 | 2500~25000 | 1600~40000 |
| 600 | 500~8000 | 300~10000 | 4000~40000 | 2500~60000 |
| Absolute druk (Mpa) | Temperatuer (℃) | |||||
| 150 | 200 | 250 | 300 | 350 | 400 | |
| 0.1 | 0.52 | 0.46 | 0.42 | 0.38 | ||
| 0.15 | 0.78 | 0.70 | 0.62 | 0.57 | 0.52 | 0.49 |
| 0.2 | 1.04 | 0.93 | 0.83 | 0.76 | 0.69 | 0.65 |
| 0.25 | 1.31 | 1.16 | 1.04 | 0.95 | 0.87 | 0.81 |
| 0.33 | 1.58 | 1.39 | 1.25 | 1.14 | 1.05 | 0.97 |
| 0.35 | 1.85 | 1.63 | 1.46 | 1.33 | 1.22 | 1.13 |
| 0.4 | 2.12 | 1.87 | 1.68 | 1.52 | 1.40 | 1.29 |
| 0.5 | 2.35 | 2.11 | 1.91 | 1.75 | 1.62 | |
| 0.6 | 2.84 | 2.54 | 2.30 | 2.11 | 1.95 | |
| 0.7 | 3.33 | 2.97 | 2.69 | 2.46 | 2.27 | |
| 0.8 | 3.83 | 3.41 | 3.08 | 2.82 | 2.60 | |
| 1.0 | 4.86 | 4.30 | 3.88 | 3.54 | 3.26 | |
| 1.2 | 5.91 | 5.20 | 4.67 | 4.26 | 3.92 | |
| 1.5 | 7.55 | 6.58 | 5.89 | 5.36 | 4.93 | |
| 2.0 | 8.968 | 7.97 | 7.21 | 6.62 | ||
| 2.5 | 11.5 | 10.1 | 9.11 | 8.33 | ||
| 3.0 | 14.2 | 12.3 | 11.1 | 10.1 | ||
| 3.5 | 17.0 | 14.6 | 13.0 | 11.8 | ||
| 4.0 | 17.0 | 15.1 | 13.6 | |||
| LUGB-2 | x | x | x | x | x | x | x | x | x | x | x | ||
| Kaliber | DN15-300mm/1/2"-12" | ||||||||||||
Metten Medium |
Saturated Steam | S | |||||||||||
| Superheated Steam | M | ||||||||||||
| Common Gas | C | ||||||||||||
| Liquid | L | ||||||||||||
| Oaren | O | ||||||||||||
Nominale druk |
0,6 MPa | 1 | |||||||||||
| 1.0 MPa | 2 | ||||||||||||
| 1,6 MPa | 3 | ||||||||||||
| 2,5 MPa | 4 | ||||||||||||
| 4.0 MPa | 5 | ||||||||||||
| Nominale temperatuer | -40℃~250℃ | 2 | |||||||||||
| -40℃~350℃ | 3 | ||||||||||||
Struktuer |
Kompakt type | C | |||||||||||
| Type op ôfstân (konverteardisplay) | R1 | ||||||||||||
| Remote type (flow kompjûter remote display) | R2 | ||||||||||||
Ferbining |
Flens (DN15-300mm) |
PN10/PN16/PN25/PN40(DIN) | D** | ||||||||||
| A15:150#, A30:300# (ANSI) | A** | ||||||||||||
| 10K/20K/30K/40K (JIS) | J** | ||||||||||||
| Wafer (DN15-300mm) | W | ||||||||||||
| Thread (DN15-100mm) | T | ||||||||||||
| Ynfoegje (DN80-2000mm) | ik | ||||||||||||
| Body Materiaal | SS304 (standert) | 4 | |||||||||||
| SS316 | 6 | ||||||||||||
Kompensaasje |
Sûnder | W0 | |||||||||||
| Mei temperatuerkompensaasje | WT | ||||||||||||
| Mei drukkompensaasje | WP | ||||||||||||
| Mei temperatuer- en drukkompensaasje | W2 | ||||||||||||
| Utfier | 4-20mA, puls, RS485 | A | |||||||||||
| 4-20mA, puls, HART (allinich converter werjaan) | B | ||||||||||||
Power Supply |
DC24V | D | |||||||||||
| 3.6V Battery Powered (allinich converter werjefte) | B | ||||||||||||
| AC220V (allinich streamkompjûtertype) | A | ||||||||||||
| Ex-Bewiis | Sûnder | W | |||||||||||
| Mei (Exia ll CT5 Ga) | E | ||||||||||||
