Corrosive acid Remote type battery magnetic flowmeter

Electromagnetic water meter has GPRS and CDMA wireless data transmission functions;
it has RS485modbus protocol (external power supply or battery power supply) communication function to realize remote data collection and management.
The sensor with advanced processing technology and liquid airproof is of long
natural life and of nice resistance to shaking leakage.It guarantees the instrument
good precision and stability .

Electromagnetic water meter is high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits.

sensor of electromagnetic flowmeteris carbon steel, SS304 and SS316 is optional, liner material is PTFE, which approved NSF and FDA. It is NSF approved allowing the 1400C to be used on potable (drinking) water applications. This Inline battery-powered magmeter is specially designed for applications where electricity and power supply availability is unavailable.

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

Accuracy of mag flow meter is ¡À0.5% standard, ¡À0.2% is optional, magmeter is calibrated on ¡À0.2% accuracy calibration device. A flow transmitter energizes the coils which creates a magnetic field in the tube. A conductive fluid moving through this field generates an induced voltage at two electrodes in the tube. waste water flow meter can be compact type and remote type, standard cable length is 10m and max cable length is 120m.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s

3.6V battery meter satisfy urban water supply to ensure accurate water fee calculation,DC3.6V powered magnetic flow meter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Battery powered magnetic flow meter is designed for calibration of flow meters under controlled and stable flow conditions.Battery meters provide obstruction free flow measurement. Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

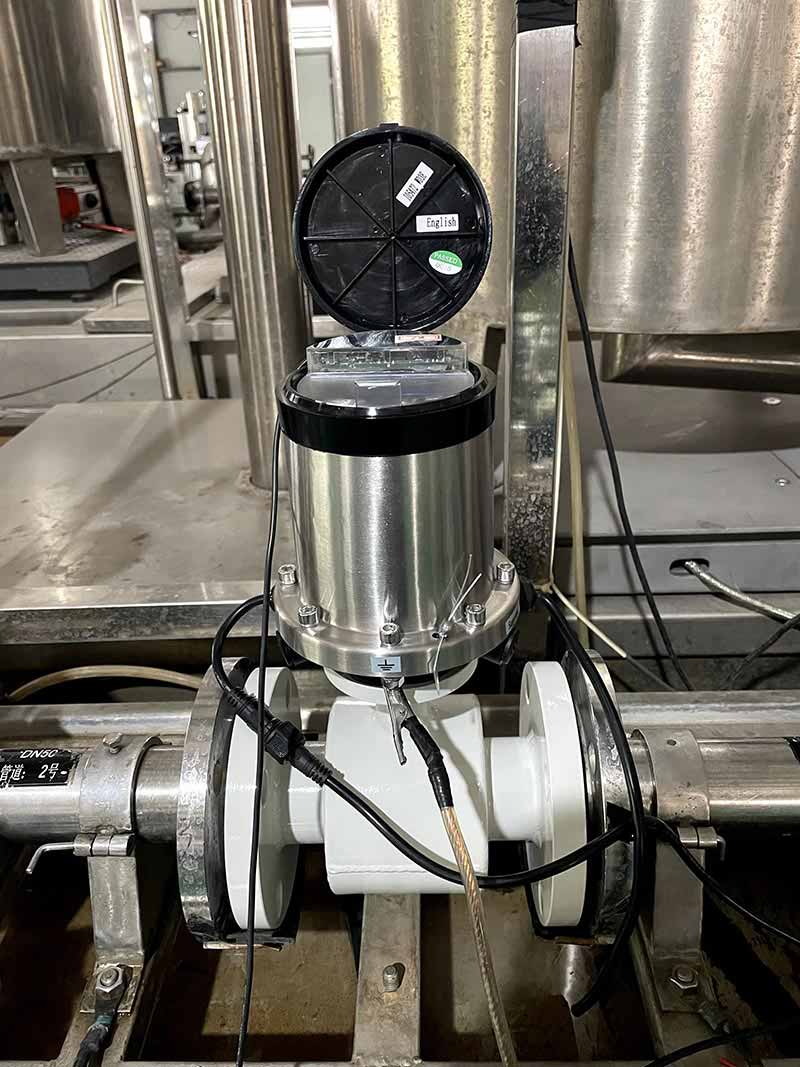

Battery powered electromagnetic flowmeter special for the area without AC220V/DC24V power supply, battery mag flowmeter transfer and monitor data via 4-20mA, pulse, RS485, GPRS. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa);
Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional);
Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA;

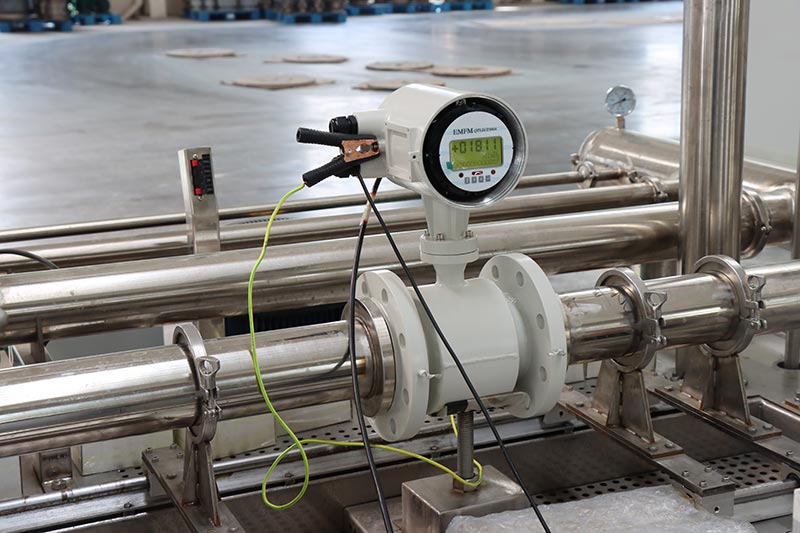

Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium;
Structure: Integral,remote,submersible,ex-proof;
Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ;
Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ;
Ambient Temperature: -20¡æ~+60¡æ;

Magnetic flow meter can be solar-powered, solar panel can be customized according to client request, like work last 2 days, 5 days, 7 days, etc.
Transmitter of electromagnetic flow meter is installed in the cabinet to protect rain and sun. Magnetic flow meter is compsed by transmitter and sensor. The magmeter flow meter is to measure sulphuric acid, it’s configured PTFE liner and Tantalum electrodes to be anti-corrosive.
Size: 1/8″”-120″”
Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote

Size of Insertion magnetic flow meter is DN100-DN3000, process connection can be thread ball valve and flange ball valve, QTLD magmeter can be installed hot tapping, don’t need cut off pipes, insertion flow meter don’t have any moving parts, and it’s free maintanance.

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

3.6V magmeter’s accuracy is affected by disturbances such as pumps,tees.elbows,valves, etc.,Install DC3.6V powered electromagnetic flow meter in pipes with enough straight line. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

magnetic flow meter’s accuracy is ¡À0.5% standard, ¡À0.2% is optional, liquid flow meter is calibrated on ¡À0.2% accuracy test bench, mag flowmeter is calibrationed 5 points by comparison method or mass method. liquid flow meter inluding inserted flow and compact electromagnetic flow meter, vortex flow meter, metal tube rotameter, ultrasonic flow meter.

Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Self-diagnosis fault alarm
GSM data infinitely transmitted
LCD display cumulative flow£¬instanta-
neous flow£¬ flow rate,flow percentage,etc.

Electromagnetic water meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

Q&T series electromagnetic flow meter with LCD Display,Human-Computer Interaction.Easy to Use,Simplicity of Operation,easy learning and applying.
Efficient Intelligent Computing,Using 16 – Bit Embedded Microprocessor,Fast Operation Speed.Low Frequency Rectangular Wave Excitation with Programmable Frequency.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Battery powered mag flow meter installation should keep far away from pumps, tees, joints, elbows, valves,etc.,Battery powered electromagnetic flowmeter requires front straight pipeline 5D, rear 3D. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Remote transmitter of electromagnetic flowmeter is explosion proof with Atex certificate. Standard confirguration of inline magnetic flowmeter is PTFE, it has been approved NSF and FDA with food grade, QTLD mag flowmeter will be tested in high and low cabinet, temperature is : -20¡æ ~ 60¡æ for 24 hours Signal out inline magnetic flow meter is 4~20 mA, Pulse, RS485 Modbus RTU standard. GPRS, HART, Profibus DP or PA are optional. Various types of instruments are usually used for data monitoring in industrial production, and electromagnetic flowmeter is one of the common instruments

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

Standard configuration of mag flowmeter is carbon steel, SS304 and SS316 are optional, liner is PDF or Neorpene, Q&T Instrument was established in 2005, products including mag flowmeter, turbine flow meter, ultrasonic flow meter, thermal mass flow meter, etc. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

3.6V battery powered electromagnetic flow meter is ideal in process measurement and control, survey, leakage detection, etc.Insertion battery mag meters specially installed in any large size pipeline. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B, Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Our Q&T attention to every detail in the process of the product structure design, material selection, manufacturing, assembly and factory testing etc. With a water tower up to 35m as pressure stabilizer for actual flow calibration, we have a professional production line for electromagnetic flowmeter, also we design and develop a series of software and hardware for electromagnetic flowmeter for mass production to ensure high quality in long term use.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

3.6V battery powered electromagnetic flow meter’s accuracy is affected by disturbances such as pumps,tees.elbows,valves, etc.,Install the mag water meter in pipes with enough straight line. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Electromagnetic water meter GSM/GPRS remote monitoring management topology diagram 4. This system introduces more humanized management such as data backup, SIM card cost statistics and so on.

Battery powered magnetic flowmeter also could measure & display temperature and pressure, humanized human-computer interaction interface, battery flow meter enjoy easy operation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Forward and reverse flow measurement.
Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
Multiple output communication (pulse, GPRS, RS485),

This electromagnetic wastewater flow meter has the features of no moving parts, which reduced the maintenance and repair with an obstructionless design. Alignment rings are available to install easily. and this magnetic flow meter Support data record / bluetooth / wireless communication

Specifications:
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
Support data record / bluetooth / wireless communication

Q&T’s battery magnetic flow meter comes standard with a rugged IP68 die-cast aluminum enclosure,which allows the device to be used in both indoor and outdoor applications. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V, Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V);

Q&T series electromagnetic flow meter is a fully intelligent electromagnetic flowmeter developed by our company using the most advanced technology at home and abroad. Its electromagnetic converter core adopts high-speed central processing unit. The calculation speed is very fast, the precision is high, and the measurement performance is reliable.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Electromagnetic flowmeters. Measuring for process management, revenue collection, liquid transportation and energy conservation. water flow meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic flowmeter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.

Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Magnetic flow meters are volumetric flow meters, which don’t have any moving parts to wear down, reducing the need for maintenance or replacement. QTLD electromagnetic flow meter is committed to conductive liquids.
Electrode: SUS316L, Hastelloy B, Hastelloy C
Size: DN3-DN3000
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

electromagnetic flow meter is calibrated by standard mass method by high accuracy calibration equipment. standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional, inline magnetic flow meter is calibrationed 5 points by comparison method or mass method. magnetic flowmeter can be solar-powered, solar panel can be customized according to client requirement from 1 to 15 days. Q&T is professional manufacturer of flow meters and level meters.

Size: DN3-DN3000
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)

waste water electromagnetic flow meter waste water electromagnetic flow meter sensors and converters in two parts. The product is based on Faraday’s law of electromagnetic induction, used to measure the conductance greater than 20 μS / cm volume of conductive liquid flow,
Medium temperature:
Integral type : -20℃~60℃
Remote type(Rubber&Polyurethane liner): -10℃~80℃
Remote type (PTFE&PFA&F46 liner): -10℃~160℃
♦ Integrated verification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.
