Pulse output Made in China flow meter ultrasonic

Not affected by water quality, the ultrasonic open channel flowmeter can be equipped with a communication interface, which is easy to connect with SCADA systems to achieve industrial remote monitoring and control. This Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs, flumes, and channels etc.

Specifications:
Sensor?Level?Range: 0-4.0m; other?level?range?also?available
Blind?zone: 0.20m
Temperature?Compensation: Integral?in?probe
Pressure?Rating: 0.2MPa
Beam?Angle: 8*?(3db)
Cable?Length: 10m?standard?(can?be?extended?to?1000m)
Sensor?Material: ABS,?PVC?or?PTFE?(optional)
Sensor?Protection Class: IP68

Widely used in Running water,Heating, Water conservation,Metallurgy,Chemical industry,Machinery,Energy etc.

Q&T brand ultrasonic flow meter is real flow calibrated,5 flow velocity point and calibrate 3 times for each flow velocity point.Q&T calibration device can calibrate from DN3~DN3000mm,and adopt Seimens,Rosemount,E+H brand flow meter as the standard meter.
Single channel ultrasonic flow meter accuracy <1.0% Multi-channel ultrasonic flow meter caccuracy can reach 0.5%

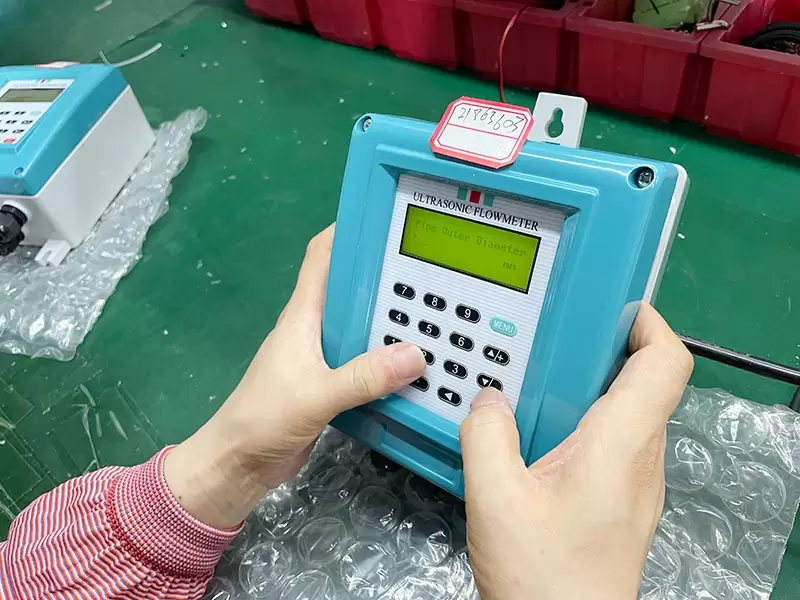

Wall Mounted ultrasonic flowmeter proven transit-time ultrasonic measurement technology This technology can be used for permanent installations where intrusive flow meters are not economically viable for permanent installations on large pipelines and for all the different process fluids encountered in the network. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Handheld Ultrasonic Flow Meter(QTDS-100H)- Wide range of applications,with clamp on transducers to measure flow rate through the pipe wall, the transit time ultrasonic flow principle. It is a 3.6V battery powered ultrsonic flow meter, for using on a wide range of sizes and can provide 24 hours measurement continuely. Accuracy: +/-1.0% of FS Wide range: DN300mm-DN6000mm Measuring clean liquids Built-in rechargeable battery 3.6V 2000 lines storage Communication: RS232

Wall mounted and handhold portable clamp on ultrasonic water flow meter battery ultrasonic flowmeter is simple to install and is suitable for large diameter pipes requiring monitoring and flow measurement, as well as a wide network of smaller supply lines. Wall mounted and handhold portable clamp on ultrasonic water flow meter battery ultrasonic flowmeter provide the tools needed to meet the diverse requirements of such a demanding industry. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

The Q&T ultrasonic water flow meter that is designed for open channel flow metering, whether you have a flume, weir or any other primary device. This 4-20mA output open channel flow meter has 4-20mA, RS485 and relay output, which is a good choice for different needs of channel flow monitoring.

Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol
Ambient?Temperature: -40 ~70 Degree C
Measure?Cycle: 1?second?(selectable?2?seconds?)
Power?Supply: DC24V?(+5%)?0.2A;?AC220V?(+20%)?0.1A?;Optional?DC12V

DN100 High Accuracy Local display wall mounted ultrasonic liquid flow meter proven transit-time ultrasonic measurement technology This technology can be used for permanent installations where intrusive flow meters are not economically viable for permanent installations on large pipelines and for all the different process fluids encountered in the network. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Pipeline ultraosnic flow meter directly contact the liquid and make the measuring accuracy better than clamp on ultrasonic flowmeter.And installation easy,don’t need calculate the sensor installation distance and cover the coupling agent in the pipe,so this meter can collect the signal very well.

Inline ultrasonic flow meter support single channel and multi-channel at the same time,when one of channel is abnormal or not connected,it can automatically switch to single channel to working
Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.
Output:4~20mA,Pulse,OCT,RS485
Body material:Standard carbon steel,SS304 and SS316 are optional
Power supply:DC24V and AC220V
Connection way:Flange type
Media temperature :-30~+150¡æ

With RS485, the ultrasonic open channel flowmeter can be equipped with a communication interface, which is easy to connect with SCADA systems to achieve industrial remote monitoring and control. This Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs, flumes, and channels etc.

Specifications:
Sensor?Level?Range: 0-4.0m; other?level?range?also?available
Blind?zone: 0.20m
Temperature?Compensation: Integral?in?probe
Pressure?Rating: 0.2MPa
Beam?Angle: 8*?(3db)
Cable?Length: 10m?standard?(can?be?extended?to?1000m)
Sensor?Material: ABS,?PVC?or?PTFE?(optional)
Sensor?Protection Class: IP68

Digital Ultrasonic flowmeter DN15 to DN6000mm Ultrasonic Flow meter is a high precision no-cut tube measurement method. This special design includes matching sensors for ease of use and is ideal for installation in existing systems Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

The PLCM industrial waste water treatment flow meter using transit-time principle, it is an economical ultrasonic flowmeter specifically designed for open channel. Compared with other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption and high certainty. At the same time, with non-contact level sensor, it also have the feature of installation simple, easy to use, no need water supply shutdown etc.

Specifications:
Display: Backlight?LCD
Flow?Rate?Range: 0.0000~99999L/S?or?m3/h
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Accuracy?of?Change in Level: 1mm?or?0.2%?of?full?span?(whichever?is?greater)
Resolution: 1mm
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol

Ultrasonic Flowmeter Portable Clamp on Ultrasonic Flow Meter is a non-contact instrument, which can measure the flow of medium with large diameter and can also be used for the measurement of medium that is not easy to contact and observe. Its measurement accuracy is very high, and the external clip-type installation can reach the highest accuracy of ¡À1.0%. It is almost not disturbed by various parameters of the measured medium, especially it can solve the strong corrosiveness, non-conductivity, Flow measurement of radioactive and flammable and explosive media. Measuring accuracy: +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

This solar power river flow meter can directly display the instant and accumulative flow. This Open Channel Water Meter is based on the flow rate-water level calculation method, and adopts an advanced flow rate measuring instrument and water level measuring instrument to ensure a new intelligent high quality flow system.

Specifications:
Sensor?Level?Range: 0-4.0m; other?level?range?also?available
Blind?zone: 0.20m
Temperature?Compensation: Integral?in?probe
Pressure?Rating: 0.2MPa
Beam?Angle: 8*?(3db)
Cable?Length: 10m?standard?(can?be?extended?to?1000m)
Sensor?Material: ABS,?PVC?or?PTFE?(optional)
Sensor?Protection Class: IP68
Output: 4-20mA, Relays, RS485

This Solar power GPRS Open Channel Flow Meter measures level, flow rate and total volume of water flowing through weirs, flumes and channels. The flow meters use a non-contact level sensor. Application field£º
1. Water and sewage treatment£ºpump room, collection well, biochemical reaction
tank, sedimentation tank.
2. Electricity, mines£ºmortar pool, coal slurry pool, butter storage tank, stockyard
or some mobile equipment control, etc.
3. Food industry£ºwineries, granaries, storage tanks for food materials, etc.

Specifications:
Display: Backlight?LCD
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Resolution: 1mm
Analogue?Output: 4-20mA
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS RTU
Ambient?Temperature: -40 ~70 Degree C
Power?Supply: DC24V, AC 220V£»Optional?DC12V

Q&T solar power Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs, flumes and channels. The flow meters use a non-contact level sensor. Application field£º
1. Water and sewage treatment£ºpump room, collection well, biochemical reaction
tank, sedimentation tank.
2. Electricity, mines£ºmortar pool, coal slurry pool, butter storage tank, stockyard
or some mobile equipment control, etc.
3. Food industry£ºwineries, granaries, storage tanks for food materials, etc.

Specifications:
Display: Backlight?LCD
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Resolution: 1mm
Analogue?Output: 4-20mA
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS RTU
Ambient?Temperature: -40 ~70 Degree C
Power?Supply: DC24V, AC 220V£»Optional?DC12V

Inline ultrasonic flow meter support single channel and multi-channel at the same time,when one of channel is abnormal or not connected,it can automatically switch to single channel to working
Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.
Input:Two-wire PT1000
Output:4-20mA,Pulse,OCT
Communication:RS485
Szie:DN15~DN6000
Accuracy:¡À1.0 %
Viscosity:0.1~¡À10m/s

PLCM series ultrasonic open channel ultrasonic flow meter can directly display the instantaneous and cumulative flow, it is good for waster water measuring also a good river flow meter. The product supports weirs or notches of different standards in various countries and can be widely used for measurement or monitoring of total water drainage. The measurement result is not affected by the water quality.
Sensor Level Range: 0-4.0m; other level range also available
Blind zone: 0.20m
Temperature Compensation: Integral in probe
Pressure Rating: 0.2MPa
Beam Angle: 8* (3db)
Cable Length: 10m standard (can be extended to 1000m)
Sensor Material: ABS, PVC or PTFE (optional)
Sensor Protection Class: IP68

The Solar power GPRS Open Channel Flow Meter has 4-20mA and RS485 signal output, it can be equipped with a communication interface, which is easy to connect with SCADA systems to achieve industrial remote monitoring and control. This Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs, flumes, and channels etc.

Specifications:
Sensor?Level?Range: 0-4.0m; other?level?range?also?available
Blind?zone: 0.20m
Temperature?Compensation: Integral?in?probe
Pressure?Rating: 0.2MPa
Beam?Angle: 8*?(3db)
Cable?Length: 10m?standard?(can?be?extended?to?1000m)
Sensor?Material: ABS,?PVC?or?PTFE?(optional)
Sensor?Protection Class: IP68

Liquid flowmeter sensor portable ultrasonic flowmeter is that to use ultrasonic technology to measure the velocity of liquid throught it.It is transit time.With two clamp on transducers to measue Fuel oil, glycol, waste streams, water flow. A user can use hand to hold as well as to operate the ultrasonic water flow meter main unit .The user-interface is self-explanatory and very easy to follow. Besides, the unique clamp-on fixture design makes the installation very simple and no special skills or tools required.
Due to the non-intrusive nature of the clamp-on technique, there is no pressure drop, no moving parts, no leaks and no contamination.
Accuracy: +/-1.0% of FS
Wide range: DN15mm-DN6000mm
Measuring clean liquids
Built-in rechargeable battery 3.6V
Communication: RS232

QT811 clamp on ultrasonic flow meter is with specially design with built-in transducers and LCD monitor in one body. Clamp-on transducers are mounted externally on the surface of the pipe and which generate pulses that pass through the pipe wall. The flowing
liquid within causes time differences in the ultrasonic signals, which are then evaluated by the flowmeter to
produce an accurate flow measurement.

Pipe Size:?DN15-DN40mm (1/2¡±~1 1/2¡±)
Flow Range:¡À0.1m/s ~¡À5m/s
Temperature: 0~75¡æ (standard)
Output: 4-20mA, OCT Pulse, RS485
Accuracy:?¡À1% of measured value
Power Supply: DC10-24V

Factory supplier Digital Ultrasonic Flow meter pulse output flowmeter is easy to use, fast to measure flow. It is a popular flowmeter for sewage environmental monitoring departments and large-diameter tap water flow measurement. Factory supplier Digital Ultrasonic Flow meter pulse output flowmeter has the characteristics of large measurement range, and different types of sensors can be used, which can realize the measurement of pipeline flow with diameters of DN20~DN6000mm. High-precision measurement, the measurement accuracy is better than ¡À1%, the linearity is 0.5%, and the repeatability accuracy is 0.2%. Non-contact measurement The Factory supplier LCD displayer digital ultrasonic flow meter sensor is adsorbed on the outer wall of the pipe to complete the flow measurement. Measuring accuracy: +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Built-in rechargeable battery 3.6V Communication: RS232

Clamp on sensor handheld ultrasonic water Flowmeter is a portable liquid flow measurement device with a sensor. Clamp on sensor handheld ultrasonic water Flowmeter adopt transit-time ultrasonic measurement technology for superior accuracy and ease of installation and installation. This easy-to-use flowmeter comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. High accuracy +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

4-20mA pulse RS485 wall mounted ultrasonic flow meter is a high precision no-cut tube measurement method. This special design includes matching sensors for ease of use and is ideal for installation in existing systems Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

QT621 Portable ultrasonic flow meter a type of portable instrument for non-invasive, quick flow and energy measurement.Portable ultrasonic flow meter matched precision transducers and signal processing circuitry to accurately measure the flow of most liquids. QT621 ultrasonic flow meter support quickly verify the flow reading of another meter and to data log flow system values over an extended time period.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

Digital fixed ultrasonic flow meter water flowmeter price is a portable liquid flow measurement device with a sensor. Digital fixed ultrasonic flow meter water flowmeter price proven transit-time ultrasonic measurement technology for superior accuracy and ease of installation and installation. Digital fixed ultrasonic flow meter water flowmeter price comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

Q&T Modbus Digital Ultrasonic Fluid Flow Meter Clamp On Ultrasonic Flowmeter provide you with an accurate, easy-to-install flow meter. wall mount flow sensor feature quick, easy clamp-on sensor installation, configuration, and a user-programmable menu-driven interface for easy commissioning in the field. Q&T Modbus Digital Ultrasonic Fluid Flow Meter Clamp On Ultrasonic Flowmeter use a special technology to ensure highly accurate flow measurement. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

Low cost ultrasonic flow meter has the high-speed data update rate and superior user-friendliness in installation and operation.Economic ultrasonic flow meter without pressure drop or energy loss. Humidity:Up to 99% RH, non-condensing;
Transmitter material: PC/ABS, IP65;
Transducer:ABS,IP68
Accuracy:±1% of measured value;
Repeatability:0.2% of measured value;

Clamp on flow meter fixed sewage ultrasonic flowmeter provide industry-leading flow measurement accuracy. With a small package that saves costs in shipping. Plus flow meters are ideal for industries that measure liquid flow without cutting pipes, such as chemical, pharmaceutical, mining, power, chemical, water and wastewater, HVAC, food and beverage, and more. It can also be used as a non-invasive detector
Accuracy: +/-1.0% of FS
Wide range: DN15mm-DN6000mm
Measuring clean liquids
Power supply: 24VDC/85VAC-2265AC
Communication: RS485
