Q&T China g ood quality battery electromagnetic flowmeter

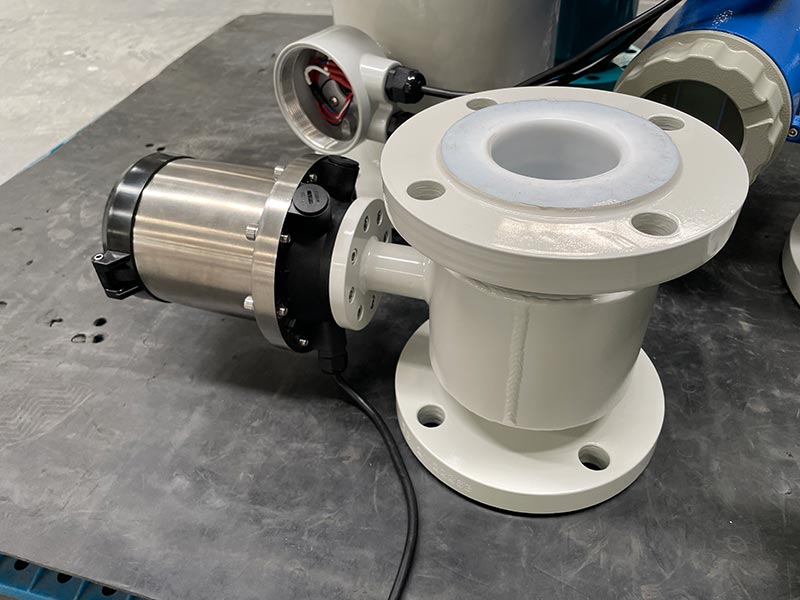

Battery-powered magnetic water meter can be used in remote area where don¡¯t have power grid . It is widely used for all conductive liquids in every industry.

Process connection of inline magnetic flow meter is flange, tri-clamp, wafer, thread, etc. we use mass method, pulse or comparison method to calibrate, each flow meter have calibration certificate together with goods. 5 points are calibrated for magnetic flowmeter. widely used for conductive liquids. electromagnetic flowmeter is composed by magnetic flow meter and pt1000 temeprature sensor, can calibrated on liquid test bench, standard accuracy is ¡À0.5%

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

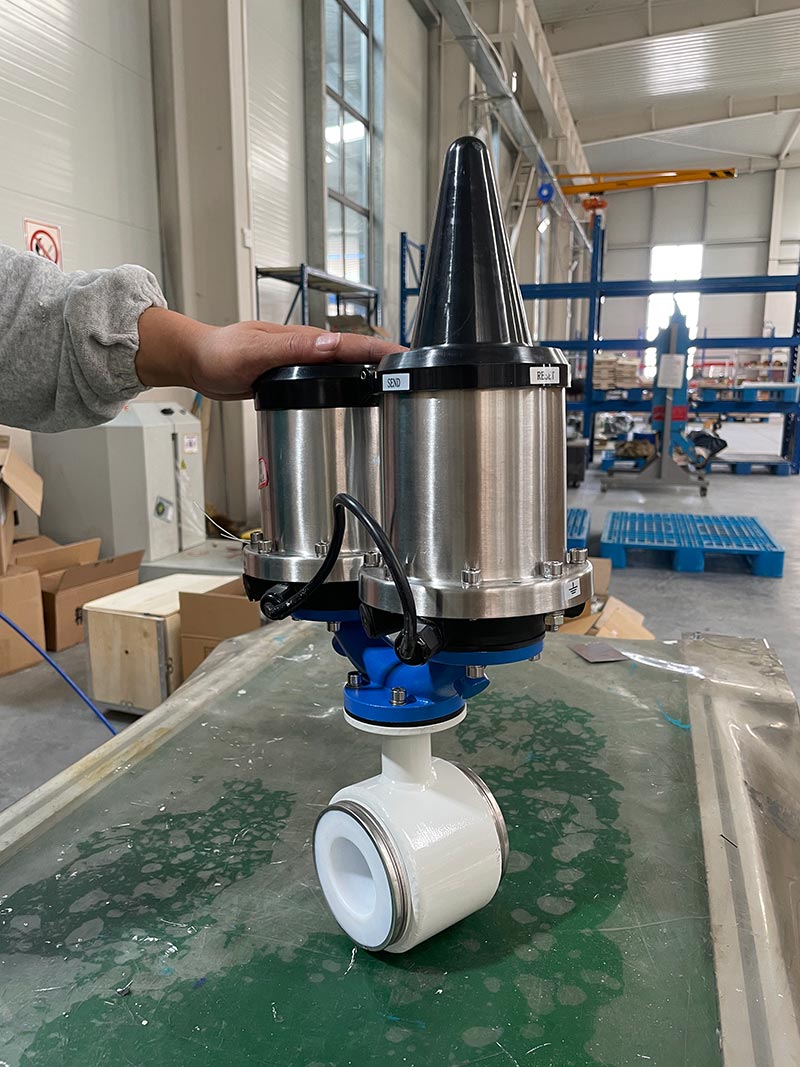

Battery power electromagnetic flowmeter service life with 5 years, battery flowmeter fulfills the special customer demands to water application with distribution network as well as irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

Forward and reverse flow measurement.
Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
Multiple output communication (pulse, GPRS, RS485),

Battery powered electromagnetic flow meter enjoys IP68 protection, Battery powered magnetic flow meter workable under water, flow meter can add external 12-24 V DC power supply. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) :-10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP): -10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional), HART(Optional), GPRS/GSM (Optional);

Q&T calibration equipment for liquid flow meter is DN3-DN3000, standard accuracy is 0.5%, 0.2% is optional. Calibration method of electromagnetic flow meter: non-contact measurement method. That is, the external ultrasonic flowmeter is clamped on the pipe of the measured flowmeter. By comparing the cumulative flow error of the two flowmeters.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

structurer is integrated type and split type with 10m cable standard and 120m max. hard rubber or Neoprene liner of magnetic flowmeter is configured for drinking water. QTLD electromagnetic flow meter has different types, insertion / tri-clamp / wafer / thread / mini / partially-filled, etc. is configured with PTFE and SS316L electrodes, with compact or remote type structurer, electromagnetic flow meter is used to measure drinking water or waste water.

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Q&T series magneric flow meter is one of the most flexible and unversally applicable flow measurement
systems available. It is volumtric flow meter which does not have any moving parts and is ideal for
waste water applications or any dirty liquid which is conductive or waste based. Q&T series Magnetic flow meter
is also ideal for the applications where low meter is also ideal for the applications where low pressure
drop and low maintrnance are reequired.

Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T series electromagnetic flow meter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and waste water, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Q&T offer 18 months warranty for Battery powered electromagnetic flow meter, battery flow meter is extremely easy to use, simple to install into position & no regular maintenance required. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

The magnetic flow meter is installed in the well to measure water, the protection grade is IP68 and it can be submered in the water.The magnetic water meter has wide measuring range, Q3:Q1 is R400, the flow sensor can be desired to be full bore and reduced bore, while reduced bore don’t need any straight pipe in the upstream and downstream.

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

mag flowmeter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. liquid flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Accuracy of QTLD electromagnetic flowmeter can reach 0.2% accuracy and has been calibrated by a third-party laboratory CNAS ISO/IEC 17025:2017, size is DN3-DN3000.
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Electromagnetic water meter is composed of sensor and transducer.
Based on Faraday’s law of electromagnetic induction, it is used to measure the volume flow rate of conductive liquid with
conductivity greater than 5 S/cm. It is an inductive instrument for measuring the volume flow rate of conductive medium.
1. A variety of electrodes are available
2. High definition LCD display, easy to understand and operate.
3. Rotatable Screen
4.ANSI, DIN, JIS flange standards.
5. OEM, ODM, all customization are supported.

Electromagnetic water meter is suitable for pipes with diameters of 50 mm to 300mm. They are based on Faraday¡¯s law of Electromagnetic Induction. The meterfeatures flanged construction and is available with choice of Liner and Electrode materials.
1) DN 6 to DN2000 covers a wide range of pipe size.
2) A variety of liners and electrodes are available to satisfy different flow characteristic.
3) Measurement stability and reducing power consumption.
4) Implementing 16 bits MCU, providing high integration and accuracy;

Mag flowmeter battery’s service life is 3 to 5 years, magnetic flow meter battery powered fulfills the customer demands to water application, revenue metering and irrigation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Measuring Range: Max 15m/s; Conductivity: >5us/cm; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional);

3.6V battery powered electromagnetic flowmeter could reach IP68 protection, put under water for long time, 3.6V battery powered magnetic flowmeter also have external DC12-24V power. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM (Optional);

Q&T’s magnetic flowmeter battery each set will have well calibrated before leave factory, mag flow meter battery adopt pulse calibration, with weighing method, guarantee the 0.5% accuracy. Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Ambient Temperature: -20¡æ~+ 60¡æ; Ambient Humidity: 5-100% RH (relative humidity); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA/pulse (optional);

Q&T series superior sensor design withstands the harshest environmental conditions. Industry optimized liner and electrode materials and resistance to abrasion and corrosion.Q&T series Digital Magnetic Flow Meter has the long-term high accuracy of measurement. It actually is not affected by fluid physical properties. Measurement accuracy can be up to 1%, 0.5%.Q&T series superior converter adopts surface mount technology (SMT), with self-check and self-diagnosis functions.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

mag flowmeter are unaffected by changes in fluid density, viscosity, temperature, pressure and conductivity. There are no obstructing flow parts in the measuring tube, no pressure loss, and lower requirements for straight pipe sections. Unique adaptability to slurry measurement. Reasonable selection of sensor lining and electrode materials, that has good corrosion resistance and wear resistance..

Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

magnetic flow meter is mainly used to measure conductive liquids, mag flowmeter has compact and remote structurer. protection grade of remote type flow sensor is IP68, it can be submerged in the water. Liquid flow meter is widely used in Sewage Treatment Plant Water Supply project and Steel & Aluminum Industries, Chemical & Fertilizer Industries. Q&T brand electromagnetic water meter has been approved ATEX explosion proof certificate. which can be used any conductivity is higher than 20 ¦ÌS/cm.
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Battery powered electromagnetic flowmeter is designed for calibration of flow meters under controlled and stable flow conditions.Battery flowmeters provide obstruction free flow measurement. Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

Battery Powered Insertion Magmeters can be used in process measurement and control, leak detection, etc.Battery Insertion Magmeters usually for large diameter pipeline which flange flow meter is costly. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA£» Electrode: SUS316L,Hastelloy B, Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Mag flowmeter battery powered can be used in process measurement and control, leak detection, etc.Battery Insertion Magnetic flowmeter usually for large diameter pipeline save cost. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

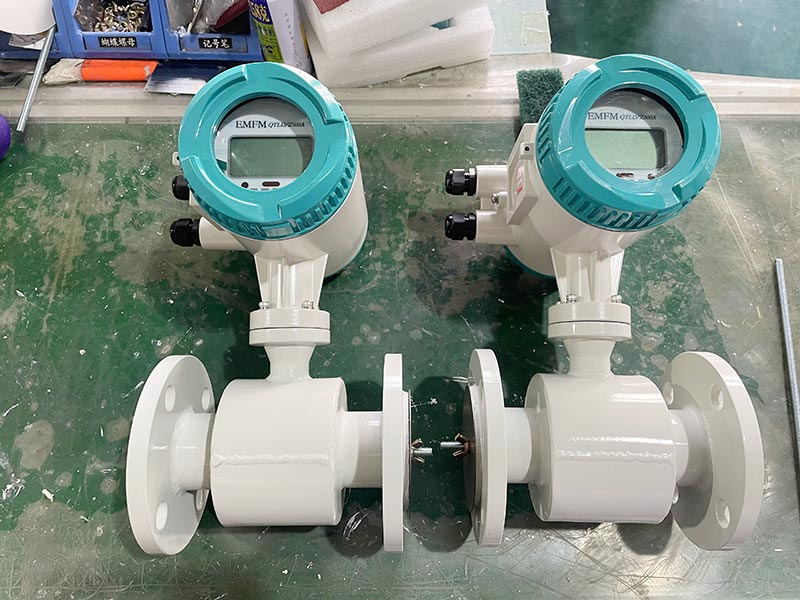

sensor of electromagnetic flowmeteris carbon steel, SS304 and SS316 is optional, liner material is PTFE, which approved NSF and FDA. It is NSF approved allowing the 1400C to be used on potable (drinking) water applications. This Inline battery-powered magmeter is specially designed for applications where electricity and power supply availability is unavailable.

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

1) Variety of lining and electrodes are available for different flow characteristic such as acid and caustic and abrasive slurries etc.
2) Flow measurement range up to R400
3) RS485 or RS232 interface supports digital communication.

Size of magmeter are 1/2″~120″, flange can be DIN, ANSI, JIS or othters. magnetic flow meter is calibration equipment 5 points flow meter according to CNAS 17025, Magmeters are volumetric flow meters that measure the voltage created when conductive liquids move through a magnetic field

Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

magnetic heat meter can be configured yellow or green OLED display, SD card or GPRS to monitor history record, bluetooth is convenient to check flow. our calibration lab has been approved CNAS ISO/IEC 17025:2017. magnetic flow meter is configured with PTFE and SS316L electrodes, with compact or remote type structurer,

Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Battery operated mag flowmeter is designed for calibration of flow meters under controlled and stable flow conditions.battery operated mag flow meter provide obstruction free flow measurement. Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

communication of magnetic flow meter is RS485, HART, Profibus DP and PA. Measurement of magnetic flowmeter is independent of fluid density, viscosity, temperature, pressure, and conductivity. the pipe is PVC, so we configure grounding rings to have better grounding to protect the electromagnetic flow meter.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
