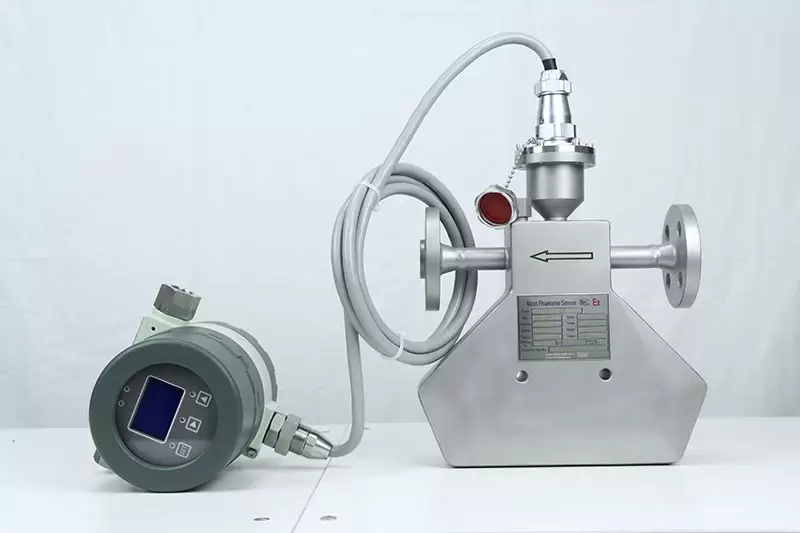

High accuracy QTCMF 4-20mA output coriolis mass flow meter provide a direct mass flow measurement without the addition of external measurement instruments. While the volumetric flow rate of the fluid will vary with changes in density, the mass flow rate of fluid is independent of density changes.
Coriolis flow meters have outstanding accuracy. The base accuracy is commonly on the order of 0.2%. In addition, the flow meters are linear over their entire flow range.
Specifications:
Accuracy: 0.20%£¬0.10%
Medium Temperature: -50…200¡æ
Nominal pressure: 0¡4.0MPa
Material : Measuring tube SS316L; Housing: SS304
Process Connection: Flange, Tri-clamp Connection, Thread
Power supply: 24V DC¡À5% or 220V AC ¡À 10% 50Hz
Working condition: Ambient temperature: – 20~60¡æ
Relative humidity: ¡Ü95%
Protection Grade: IP67
Instrument display: mass flow, volume flow, density, temperature
