Gas mass flowmeters thermal mass flow meters

Thermal flow meter is accurate, easy to install, no moving parts and best suitable solution for measuring and controlling compressed Air, oxygen, nitrogen, biogas, digester gases, ethane and natural gas flow. Heat dispersion (mass flow) technology to provide proportional mass flow measurement resulting in higher accuracy performance at a lower cost than orifice flow meter, Vortex flow meter and other gas flow measuring devices.
Power supply:DC24V and AC220V
Output:4-20mA,Pulse,RS485
Body material:Standard SS304,and SS316 is optional
Velocity:0.1~100Nm/s
Media temperature:-40~+220¡æ

Q&T¡®s every thermal gas mass flowmeters be calibrated by critical nozzl flow calibration device to ensure flow meters accuracy.
Thermal meters require a fully developed flow profile as a prerequisite for correct flow measurement.
When the instrument is in used explosion-proof environment, make sure that the explosion-proof certification and temperature class of instrument meet to the requirements on site
Media temperature:-40~+220¡æ
Size£º
Insertion type:DN32~DN4000
Flange type:DN10~DN300
Tri-clamp type :DN10~DN100
Thread type:DN10~DN100

Q&T gas mass flowmeter thermal gas mass flow meter is one of hot sale flow meter, This thermal flow meter feature is no moving parts, nearly unobstructed straight through flow path, require no temperature or pressure corrections and retain accuracy over a wide range of flow rates.
Widely turndown ratio:100:1
Power supply:24VDC&220VAC
Response time:1S

Thermal mass flow meters are used frequently in monitoring or controlling mass-related processes and measuring range can reach 1:100
So thermal mass flow meters are most often used for the regulation of low gas flowrate.
Media:All gas except acetylene and humid gas
Measure range:1:100
Sesnsor working temperature:-20~220℃
Transmitter working temperature:-20~45℃
Output:4-20mA

Thermal mass flow meters can have very high rangeability and reasonable accuracy for gases flowrate ,but can’t measure humity gases
Thermal flow meter is accurate, easy to install, no moving parts and best suitable solution for measuring and controlling compressed Air, oxygen, nitrogen, biogas, digester gases, ethane and natural gas flow. Heat dispersion (mass flow) technology to provide proportional mass flow measurement resulting in higher accuracy performance at a lower cost than orifice flow meter, Vortex flow meter and other gas flow measuring devices.

Thermal gas mass flowmeter for natural gas
As one kind gas flow meter,thermal gas mass flow meter also can measure natural gas.
Compared to gas turbine flow meter,the thermal gas mass flow meter is cost-effective and have a wide measurement trundown ratio.

The thermal gas flowmeter is mainly used for measuring gas with low flow and the range could reach 1:100,which is btter than gas flowmeter on market and low flow could be measured,the min.flow velocity can reach 0.1Nm/s and Max. velocity reach 100Nm/s
Media:All gas except acetylene and humid gas
Measure range:1:100
Sesnsor working temperature:-20~220℃
Transmitter working temperature:-20~45℃
Output:4-20mA

Q&T brand thermal gas flow meter adopt gas venturi sonic nozzle calibration device regular insprction and verification guarantee accuracy and reliability of the calibration device.
According to clients request,Q&T also can apply the CNAS certificates for the thermal flow meter
Media:All gas except acetylene and humid gas
Measure range:1:100
Sesnsor working temperature:-20~220℃
Transmitter working temperature:-20~45℃
Output:4-20mA

Q&T brand thermal gas mass flow meter is one of hot sale flow meter, This thermal flow meter feature is no moving parts, nearly unobstructed straight through flow path, require no temperature or pressure corrections and retain accuracy over a wide range of flow rates.
Thermal mass flow meter is precision instruments that can directly measure mass flow,such as industrial gases, compressed gas, and other gases.
Accuracy :Inline type is ¡À1.0%,insertion type is ¡À1.5%
Media temperature:-40¡æ~+220¡æ
Widely turndown ratio:100:1
Power supply:24VDC&220VAC
Response time:1S

Thermal gas air flow meter is according the principle of constant temperature differential method is adopted for this instrument to measure the gas mass flow accurately, featured by small volume, high degree of digitalization, convenient installation and accurate measurement
Thermal gas mass flow meter have many benefits -Wide turndown ratio,low pressure drop,application flexibility and gas mass flow rate measurement.
DC4-20mA four-wire output
Mass flow unit
SS304 rod
Dual power:24VDC,220VAC
Min.Flow veloctiy:0.1Nm/s
Output:4-20mA

As the important gas flow meter,thermal gas flow meter is very popluar to measure various of dry gas.
This gas mass flow meters are be calibrated by sonic nozzle,current the snoic nozzle is more better clibration device for gas flow meter,and ensure the accuracy during calibrating
Pressure up to 4.0Mpa
Dural power:24VDC,220VAC
4-20mA is Optical isolation
Power supply:DC24V and AC220V
Output:4-20mA,Pulse,RS485
Body material:Standard SS304,and SS316 is optional

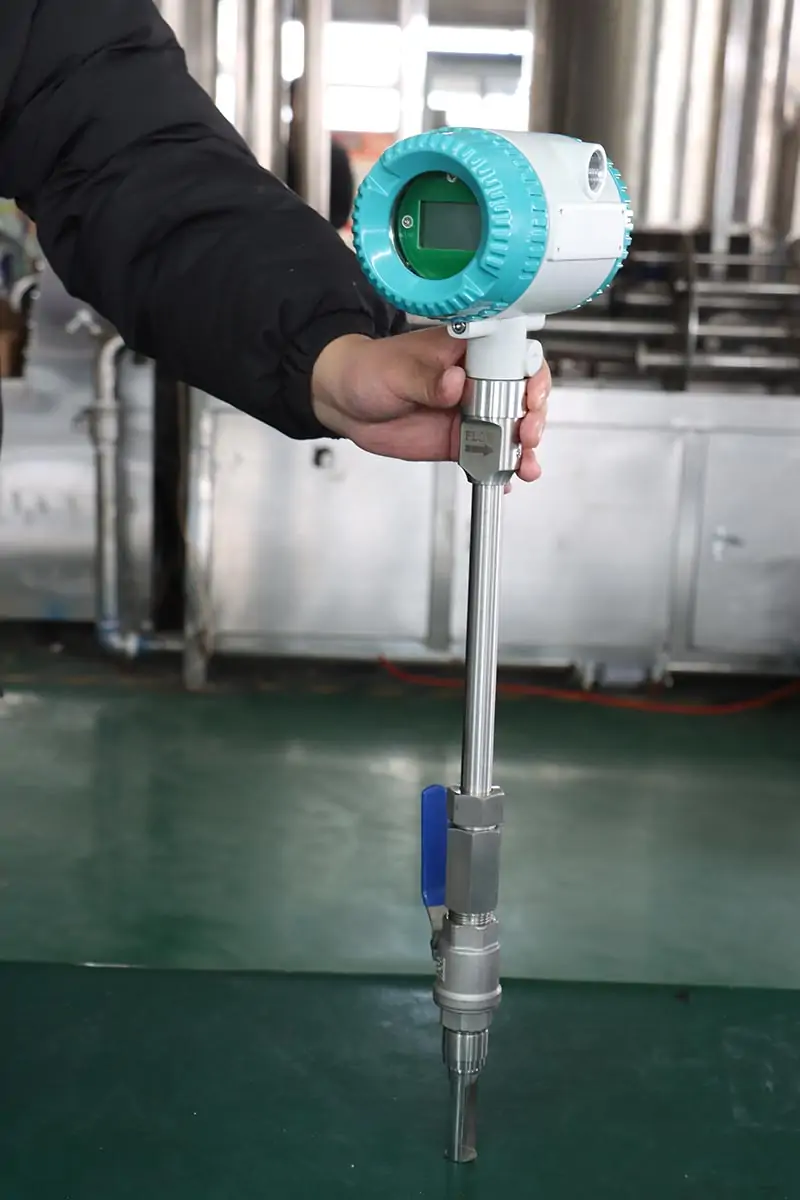

Sometimes thermal gas mass flow meter be used to measure the dangerous gas,such as Natural gas,H2,O2 etc.So the thermal flow meter need with Ex-proof function.
Except above gas,mass flow meter also can measure N2,Ar,Air,CO2 etc
Flow measurement up to 24 points
Correction of output analog quantity Multipoint nonlinear curve correction
Flow and temperature detection at the same time, switch display
Digital LCD display
Stainless steel body
Output:4-20mA,Pulse,RS485
Accuracy:
In-line type accuracy:¡À1.0%
Insertion type accuracy::¡À1.5%
