Liquid ultrasonic flow meter

The wall mounted type ultrasonic flow meter, can be used for nearly any liquid from pure water, sewer water, petrol chemicals, metallurgy, electric power plant coolant flow, irrigation, city water, energy monitoring, the meter can indicate flow velocity, flow rate, total flow for nearly any fluid.
1.Accuracy: +/-1.0%
2.for pipelines from DN15mm up-to DN6000mm
3.for flow speeds as low as 0.01 m/s and as high as 32 m/s
4.for ambient temperatures as low as -65 deg C and as high as +70 deg C and at 100% humidity
5.for liquid temperatures in the range of -30 deg up-to 160 deg C
6.in hazardous areas and hard to access locations
7. for clamp-on installation, the process pressure is not a 8.consideration, inline versions are available for liquid pressures as high as 400 bar
9.Clamp-on Ultrasonic Flow meter for Liquids
10.No piping cutting—cost saving
11.Installation available without interrupting the plant operation
12.Non-contact and low-maintenance sensor
13.Wide selection

This irrigation flow meter is a professional economic and practical instrument during agriculture, industry research and development. It is a non-contact measurement and can be applied in even harsh environments. This Open channel Irrigation flow meter can directly display the instantaneous and cumulative flow.
Power Supply: DC24V (+5%) 0.2A; AC220V (+20%) 0.1A ;Optional DC12V
Flow Rate Range: 0.0000~99999L/S or m3/h
The maximum of Accumulative Flow:  9999999.9 m3/h
Analogue Output: 4-20mA, corresponding to instantaneous flow
Relays Output: Standard 2 relay outputs(Optional up to 6 relays)
Serial Communication: RS485, MODBUS -RTU standard protocol
Ambient Temperature: -40 ~70 Degree C

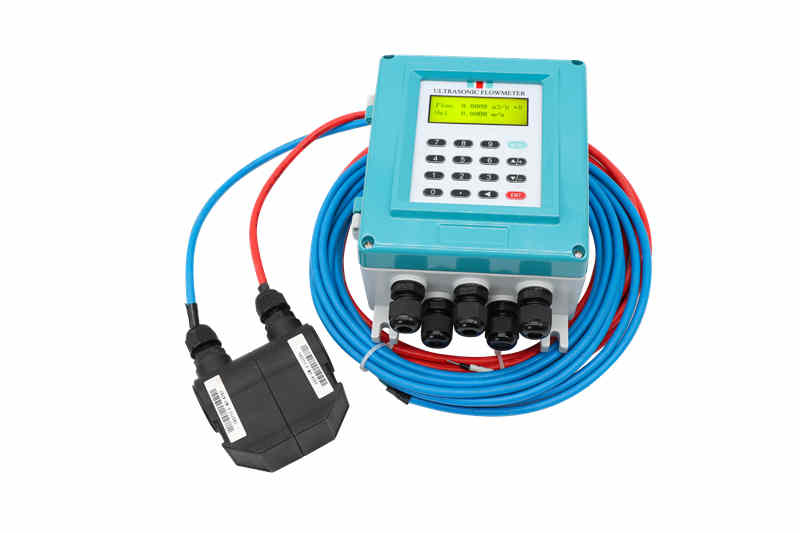

The fixed type ultrasonic flow meter, can be used for nearly any liquid from pure water, sewer water, petrol chemicals, metallurgy, electric power plant coolant flow, irrigation, city water, energy monitoring, the meter can indicate flow velocity, flow rate, total flow for nearly any fluid.
Accuracy: +/-1.0%
for pipelines from DN15mm up-to DN6000mm
for flow speeds as low as 0.01 m/s and as high as 32 m/s
for ambient temperatures as low as -65 deg C and as high as +70 deg C and at 100% humidity
for liquid temperatures in the range of -30 deg up-to 160 deg C
Non-contact and low-maintenance sensor
Wide selection
