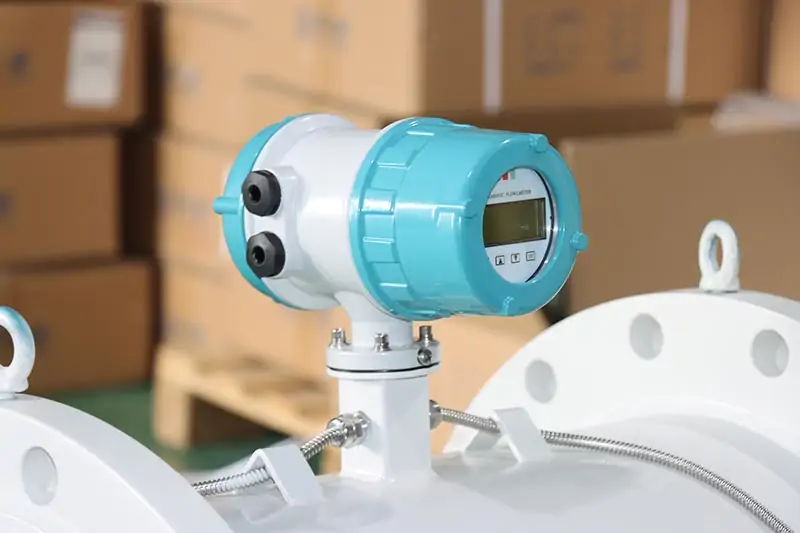

Pulse output ultrasonic flow meter

Flange ultrasonic flow sensors are popular solution to simplify flow measurement across a variety of applications and sensors can be made from 50~2000mm,standard body material is carbon steel, SS304 and SS316 are optional.
Input:Two-wire PT1000
Output:4-20mA,Pulse,OCT
Communication:RS485
Szie:DN15~DN6000
Accuracy:¡À1.0 %

Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.
Measuring cycle:50mS
Output:4~20mA,Pulse,OCT,RS485
Body material:Standard carbon steel,SS304 and SS316 are optional
Power supply:DC24V and AC220V

Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.
Bi-directional flow measurement
Backlit LCD
Measuring up to 100 times/s
Accuracy:¡À0.5%

Ultrasonic Flow meter for applications in clean water and in low conductivity media. Operating principle based on transit time measurement.
Output:4-20mA,Pulse,OCT
Communication:RS485
Transmitter working temperature:-10~70¡æ
Sensor wotking temperature:-30~150¡æ
Power supply:DC24V,AC220V

Inline ultrasonic flow meter support single channel and multi-channel at the same time,when one of channel is abnormal or not connected,it can automatically switch to single channel to working
Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.
Output:4~20mA,Pulse,OCT,RS485
Body material:Standard carbon steel,SS304 and SS316 are optional
Power supply:DC24V and AC220V
Connection way:Flange type
Media temperature :-30~+150¡æ

Pipeline ultraosnic flow meter directly contact the liquid and make the measuring accuracy better than clamp on ultrasonic flowmeter.And installation easy,don’t need calculate the sensor installation distance and cover the coupling agent in the pipe,so this meter can collect the signal very well.
Szie:DN15~DN6000
Accuracy:¡À1.0 %
Viscosity:0.1~10m/s
Measuring cycle:50mS
Output:4~20mA,Pulse,OCT,RS485
Body material:Standard carbon steel,SS304 and SS316 are optional
Power supply:DC24V and AC220V
Connection way:Flange type
Media temperature :-30~+150¡æ

Q&T brand pulse output ultrasonic flow meter is one kind of economy type flow meter for liquid,multi channle inline ultrasonic flow meter accuracy less 0.5%
OCT output
RS485 communication
Input:Two-wire PT1000

Inline ultrasonic flow meter support single channel and multi-channel at the same time,when one of channel is abnormal or not connected,it can automatically switch to single channel to working
Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.

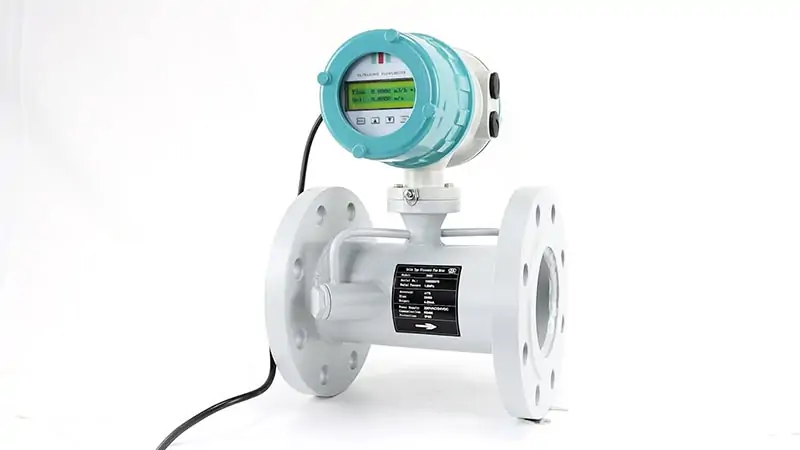

Flange ultrasonic flow meter could be manufactured from 50mm~700mm and mainly be used to measure the flow and heat of clean liquid which don’t contain large concentration of suspended particles or gas.
Accuracy:±1.0%
Heat measurement
Carbon steel body
Dual power supply:24VDC &220VAC
Flow velicity:0~±10m/s

Ultrasonic flow meter use sound waves to determine the velocity of a fluid flowing in a pipe.Inline type ultrasonic flow meter can be OEM,such as Body color,Transmitter color,Channle number,Logo display etc.
Accuracy:±1.0% ; Heat measurement
Carbon steel body; Dual power supply:24VDC &220VAC
Flow velicity:0~±10m/s; 2 way input
4-20mA,Pulse,OCT,RS485; Bi-directional flow measurement
Backlit LCD
