turbine manufacturers

Turbine flowmeter is a kind of velocity flowmeter, mainly used to measure liquid flow. It uses a multi-blade rotor (turbine) to sense the average flow rate of the fluid, thereby deriving the flow or total meter. It consists of a sensor and an intelligent display, and can also be made into an integral type. Because of its high precision and repeatability It is not only widely used in the measurement of clean water flow in source water and water supply systems, but also in petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas and It is also widely used in measurement objects such as cryogenic fluids
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

turbine flow sensor are simple structure, Lightweight, high accuracy, good repeatability, sensitive reaction, low installation and maintenance£¬ Easy to use and so on,it is used in petroleum, chemical, metallurgy, water, paper and other industries, Is to measure the energy flow measurement and instrumentation of the ideal
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

turbine flow meter has advantage of precision , which can be used to measure the flow and total amount of liquid together with the corresponding flowmeter. When used together with the quantitative control instrument developed by our factory, it can carry out high precision quantitative control of liquid feeding. Widely used in petroleum, chemical, metallurgy, scientific research and other fields of measurement and control system. Turbine flow sensors equipped with sanitary joints can be used in the pharmaceutical industry.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

turbine flow meter is a volumetric metering the meter consists of a rotor and bearing assembly Suspended on a shaft, which is mounted to a support device.
magnetic or modulated pick-off sensor is used to detect the passage of each rotor blade and generate a frequency output. The frequency output can be read directly with the end users electronics or further processed to convert to a linear analog flow Rate output.
Turbine flow meters are used to measure clean, dry gases and liquids such as hydrocarbons, chemicals, gases and vapors, fuels
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

The liquid turbine flowmeter has small pressure loss, the impeller has anti-corrosion function, has strong anti-magnetic interference and vibration ability, reliable performance, long life, strong function of the whole machine, low power consumption. If it is matched with the display instrument with special functions of our company, It can also carry out quantitative control, excess alarm, etc.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

liquid turbine flowmeter, as fluid flows through turbine rotor and drives it to rotate, the rotating rotor periodically cuts magnetic field line to generate electric pulse signal, which can be transmitted to output and transferred to the meter to display flow rater or totalizer. It features in high accuracy, good repeatability, simple structure, low pressure loss, convenient maintenance, etc.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

Sanitary turbine flow meters have stainless steel bodies and come standard with Tri-Clover fittings. Sanitary flow meter is suitable for measuring liquid without impurities. It can output pulse frequency signal. It is used to detect instantaneous flow and total integrated flow. Sanitary flow meter can be used in food, sport drink, liquor and other beverage industries, in preprocess applications.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

turbine flow sensor has the advantages of simple structure, Lightweight, high accuracy, good repeatability, sensitive reaction, low installation and maintenance£¬ Easy to use and so on, Widely used in petroleum, chemical, metallurgy, water, paper and other industries, Is to measure the energy flow measurement and instrumentation of the ideal
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

turbine flow meter is a kind of precision flowmeter, which can be used to measure the flow and total amount of liquid together with the corresponding flowmeter. When used together with the quantitative control instrument developed by our factory, it can carry out high precision quantitative control of liquid feeding. Widely used in petroleum, chemical, metallurgy, scientific research and other fields of measurement and control system. Turbine flow sensors equipped with sanitary joints can be used in the pharmaceutical industry.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

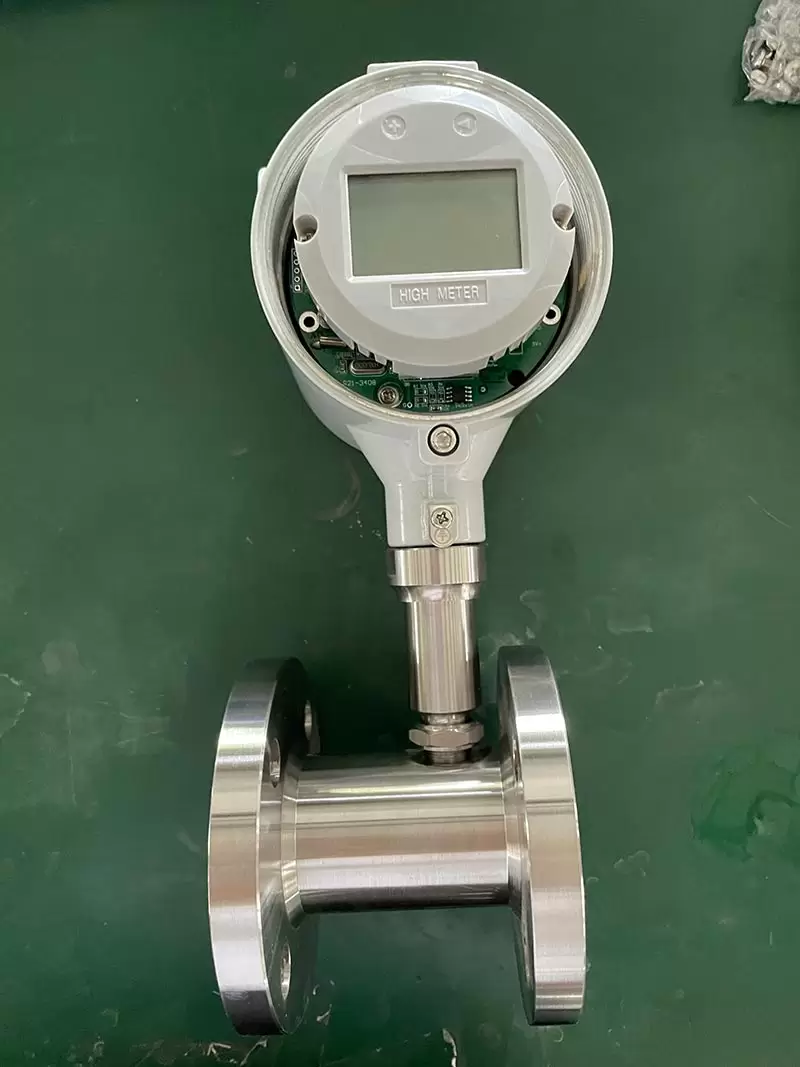

The integrated turbine flowmeter design is explosion-proof and can display total flow rate, instantaneous flow rate and percentage of full flow rate. The battery adopts long-acting lithium battery, the service life of single function integral meter battery can reach more than 5 years, and the service life of multi-function display meter battery can also reach more than 12 months.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

Turbine flow meter (better described as an axial turbine) translates the mechanical action of the turbine rotating in the liquid flow around an axis into a user-readable rate of flow (m3/h, gpm, lpm, etc.). The turbine tends to have all the flow traveling around it. Turbine flowmeters now constitute 7% of the world market. Turbine flow meters are used for the measurement of natural gas and liquid flow
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

Turbine meters measure flow using the mechanical energy of the fluid or gas to rotate a turbine rotor within the flow stream inside the meter. The rotations are measured and calculated to provide a proportional measurement relative to flow rate. The Principle is well proven and the application suitability list is very large.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

turbine flowmeter can be applied to alcohol, toluene, etc. which are not electrically conductive. And it can be used also in oil and gas, power plants, pharmaceutical and pulp & paper-making industry. However, it is recommended to not use for fluids containing sludge or highly viscous fluids. Also, it can be provided in flange type or screw (male or female) type while being able to cope with various piping conditions.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

Turbine flowmeter measures the flowrate from the number of revolutions of a blade placed in the flow. The speed of revolutions of the blade with an axis parallel to the flow direction is proportional to the speed of the flow. Utilizing the capability of highly accurate measurement for wide range of viscosity, the turbine flowmeter is useful for process control, transactions as well as process control of petroleum products, general chemical fluids, liquefied gas, water, etc.
In addition to the model for liquid, models dedicated to saturated steam measurement are also available.

Turbine flow meters are designed to have so many characteristics,such as simple structure, light weight, high precision, good reiteration, sensitive reaction, easy installation and using. Equipped with other display devices with special functions, turbine flowmeter can also do quantity control, excessive alarm and so on. It is really perfect in flow measurement and energy saving.

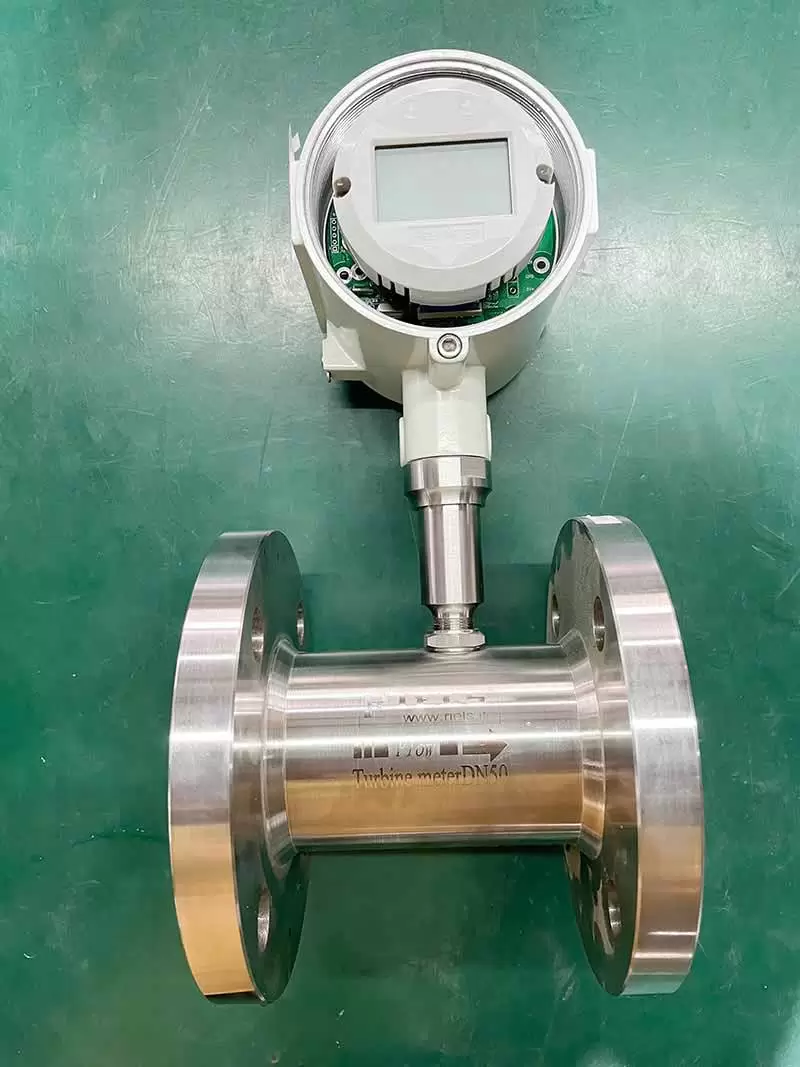

turbine flow meter refers to the turbine flow sensor with 50mm size. DN50 turbine flow meter can be used to take volumetric flow measurement of petroleum, organic liquid, biogas, LPG gas, liquefied gas, natural gas, hydrocarbon gas, nitrogen, cryogenic fluid, water, diesel, High-pressure hydraulic oil, methanol and other non-impurity, non-corrosive. 2 inch turbine flow meter has many applications in turbine heating systems, boilers measurement of water supply, heat exchange system, air conditioning circulating water, etc.

turbine Flow meter wide working temperature and pressure range, it is capable of measuring various mediums and commissioning into extreme working conditions. Flow meter for diesel are popular in the Oil & Gas industry, Chemical industry, and Water industry.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

The turbine flow meter is an ideal solution when high accuracy, compact size, fast response, and high tolerance to shock and vibration are critical requirements and suitable for wide range of viscosity medium including oil, gas, water and wastewater, chemical, gas utility, power, food and beverage, aerospace, pharmaceutical, etc.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

Turbine flowmeter measures the flowrate from the number of revolutions of a blade placed in the flow. The speed of revolutions of the blade with an axis parallel to the flow direction is proportional to the speed of the flow.the turbine flowmeter is useful for process control, transactions as well as process control of petroleum products, general chemical fluids, liquefied gas, water, etc.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

Turbine Flow Meter is a volumetric measuring turbine type of Impeller Flowmeters, made up of sensors and Convertor. The flowing fluids engage the rotor causing it to rotate at an angular velocity proportional to the fluid flow rate. The Sensor reacts to the average velocity of fluid with the multi-blades rotor so as to speculating the flow value and the accumulative flow value
liquid turbine flow meter is a volumetric metering the meter consists of a rotor and bearing assembly Suspended on a shaft, which is mounted to a support device.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

liquid turbine flowmeter, It features in high accuracy, good repeatability, simple structure, low pressure loss, convenient maintenance, etc. It is ideal to measure the volume of low-viscosity liquids in closed pipes, such as tap and demineralized water, fuels, liquefied gases, light fuel oil, solvents, pharmaceutical fluids, food etc.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

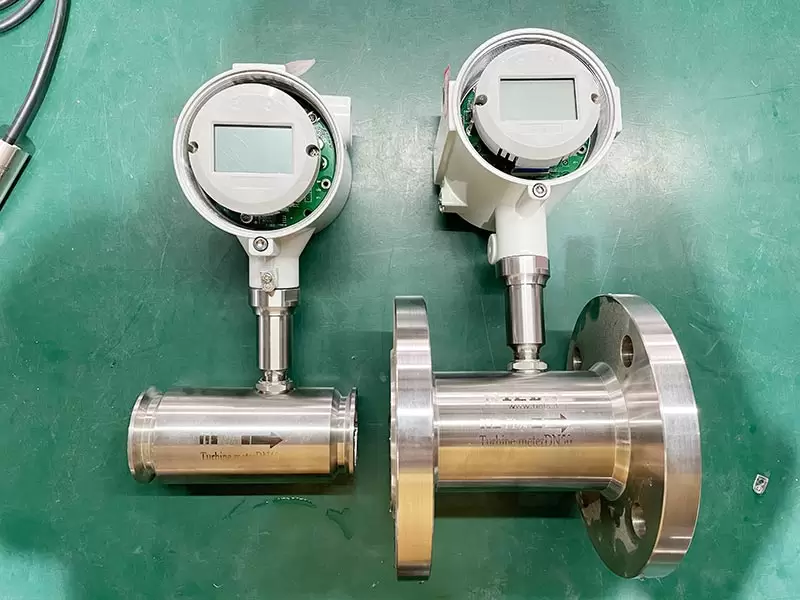

Liquid turbine flow meter having a mechanical section combined with electronic board displaying the flow rate, the end connection of which is finished with a flange. Because its driving part is mechanical, it can be applied for all fluids of low temperature to high temperature with relatively high accuracy and excellent reproducibility.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

Turbine flowmeter installation
Normally turbine flow meter has flange, thread, clamp-on connections, and the fluids direction should be the same as the arrow on the meter body. The liquid turbine flow sensor can be installed horizontally and vertically, and the fluid direction must be upward when installed vertically.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

liquid turbine flow meter is a new type of intelligent instrument with integrated turbine flow sensor and display product calculation developed by advanced ultra-low power single-chip microcomputer technology
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

Turbine flow meter use the mechanical energy of the fluid to rotate a “pinwheel” (rotor) in the flow stream. Blades on the rotor are angled to transform energy from the flow stream into rotational energy. The rotor shaft spins on bearings.
diesel turbine flow meter is a new generation turbine flow meter which was designed with advanced flow technologies both home and aboard.
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

liquid turbine flowmeter is a kind of precision flow measuring instrument. It can be used to measure the flow and totality of liquid with the corresponding flow metering instrument. It has simple structure, light weight, high precision and complex. A new generation of turbine flowmeters with good characteristics, responsiveness, easy installation and maintenance. Widely used in metallurgy, chemical, petroleum, urban construction, environmental protection, food, metallurgy, water supply, paper and other fields, it is an ideal instrument for flow metering and energy saving. High-precision measurement of the volumetric flow of liquids such as water, tap water, diesel, gasoline and lower viscosity crude oil..
Process Connection£ºThread/Flange/Clamp
Sensor Material£ºSS304, SS316L Optional
ACCURACY:¡À0.5%/¡À0.2%;
OUTPUT: PULSE/4-20mA;
Digital Communication:RS485, MODBUS; HART

liquid turbine flowmeter, as fluid flows through turbine rotor and drives it to rotate, the rotating rotor periodically cuts magnetic field line to generate electric pulse signal, which can be transmitted to output and transferred to the meter to display flow rater or totalizer. It features in high accuracy, good repeatability, simple structure, low pressure loss, convenient maintenance, etc. It is ideal to measure the volume of low-viscosity liquids in closed pipes, such as tap and demineralized water, fuels, liquefied gases, light fuel oil, solvents, pharmaceutical fluids, food etc.

turbine flow meter having a mechanical section combined with electronic board displaying the flow rate, the end connection of which is finished with a flange. Because its driving part is mechanical, it can be applied for all fluids of low temperature to high temperature with relatively high accuracy and excellent reproducibility.

Turbine flowmeter installation
Normally turbine flow meter has flange, thread, clamp-on connections, and the fluids direction should be the same as the arrow on the meter body. The liquid turbine flow sensor can be installed horizontally and vertically, and the fluid direction must be upward when installed vertically. The liquid should be filled with tubing and must be free of air bubbles. The inner wall of the straight pipe section should be smooth and clean, free of defects such as dents, scale and peeling.

liquid turbine flow meter is a new type of intelligent instrument with integrated turbine flow sensor and display product calculation developed by advanced ultra-low power single-chip microcomputer technology, which has obvious advantages such as compact mechanism, clear reading, high reliability, undisturbed by external power supply, lightning resistance and low cost.
