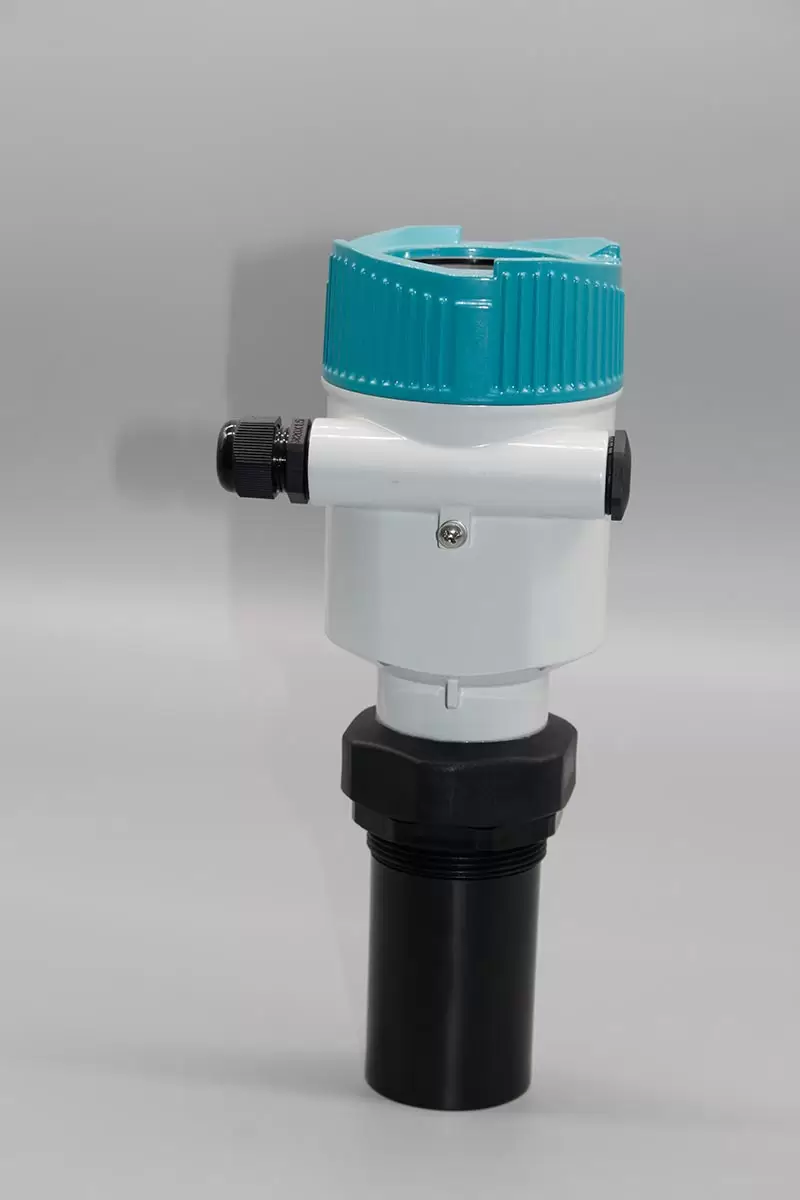

Ultrasonic Level Meter Sensor

This top quality water level measuring PTFE Liquid Level Sensor is instrument of measured water or material level; This Ultrasonic Level Meter Sensor is a digital level meter with high- performance microprocessor to process signals; It is non-contact, high reliability, cost-effective, easy to install and maintain.

Specifications:
Measuring Range: liquid: 0.2-30 m
Process Connection: G2 Thread/ M95*2.0
Energy Transducer Material: ABS, PVC, PTFE
Temperature: -40~ 75 Deg C
With automatic Temperature compensation.
Process Pressure: ¡À 0.1MPa
Precision: 0.2% of actual range
Signal output: 4-20mA (Option:HART)
Power Supply: DC20V~32V ¡Ý30mA
Mode of Indication: 4 Digit LCD

Q&T High Accuracy Ultrasonic Level Gauge is a kind of non-contact, high reliability, and easy installation level measuring instrument. The Wireless Ultrasonic Liquid Tank Level Meter Sensor can be widely
applied to the water supply, food industry, chemical, electricity and oil industries.

Specifications:
Measuring Range: liquid: 0.2-30 m
Process Connection: G2 Thread/ M95*2.0
Energy Transducer Material: ABS, PVC, PTFE
Temperature: -40~ 75 Deg C
With automatic Temperature compensation.
Process Pressure: ¡À 0.1MPa
Precision: 0.2% of actual range
Signal output: 4-20mA (Option:HART)
Power Supply: DC20V~32V ¡Ý30mA
Mode of Indication: 4 Digit LCD

This top quanity water level Ultrasonic level gauge is instrument of measured water or material level; This Ultrasonic Level Meter Sensor is a digital level meter with high- performance microprocessor to process signals; It is non-contact, high reliability, cost-effective, easy to install and maintain.

Specifications:
Measuring Range: liquid: 0.2-30 m
Process Connection: G2 Thread/ M95*2.0
Energy Transducer Material: ABS, PVC, PTFE
Temperature: -40~ 75 Deg C
With automatic Temperature compensation.
Process Pressure: ¡À 0.1MPa
Precision: 0.2% of actual range
Signal output: 4-20mA (Option:HART)
Power Supply: DC20V~32V ¡Ý30mA
Mode of Indication: 4 Digit LCD
