Sea water Separated type battery electromagnetic flowmeter

Battery magnetic flowmeter also could measure & display temperature and pressure, humanized human-computer interaction interface, battery mag flow meter enjoy easy operation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa);
Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional);
Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA;
Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium;
Structure: Integral,remote,submersible,ex-proof;
Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional);
Output Signal: 4-20mA / pulse (optional);
Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Q&T is manufacturer for flow meters, protection grade of magnetic flow meter sensor is IP68 for remote and IP65 for compact magnetic flow meter, sensor can be submerged in the water for 3m depth or buried underground, standard cable length is 10m, max cable length is 100m, Remote type liquid flow meter is recommended for large size.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

DC3.6V powered mag flowmeter’s accuracy is affected by disturbances such as pumps,tees.elbows,valves, etc.,Install the battery powered mag meter in pipes with enough straight line. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

QTLD magnetic flowmeter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. Electromagnetic flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Electromagnetic flowmeters have been used for continuous flow measurement in industrial applications for many years. They are ideally suitable for liquids with an electrical conductivity greater than 5 μS/cm. In addition to water and waste water, other contaminated liquids are typical areas of application.
Our product range for flow measurement includes both “Insertion” and “Inline” in different versions. While the magnetic field in “Full Bore” or “Inline” versions extends over the entire pipe cross section, the magnetic field from the immersed sensor in the Insertion version is transmitted only to a part of the medium.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304

Battery power mag flow meter universally applicable for conductive liquids, Battery power electromagnetic flowmeter fully functional in remote areas without power, realize wireless measurement. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

magnetic flowmeters can display instantaneous flow, total flow, velocity, high and low alarm, empty pipe alarm, self-diagnosis, Three built-in totalizers: forward flow, reverse flow and net flow, liquid flowmeters are ideal choice for conductive liquids
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Size: DN3-DN3000
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic

Inline flow meter is widely used for conductive liquids which conductivity is high than 20 ¦ÌS/cm, size is DN3-DN3000, which can be used various pipes. No moving parts, no pressure loss and require very less maintenance.
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

The sensor with advanced processing technology and liquid airproof is of long
natural life and of nice resistance to shaking leakage.It guarantees the instrument
good precision and stability .

electromagnetic flowmeter is unaffected by changes in fluid density, viscosity, temperature, pressure and conductivity. There are no obstructing flow parts in the measuring tube, no pressure loss, and lower requirements for straight pipe sections. mag flowmeter is calibrated by standard mass method by high accuracy calibration equipment. standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

LCD display, display Cumulative flow,lnstantaneous flow Forward flow, Reverseflow
Units: L/h. L/m. L/s. m3/h. m3/m. m 3/s.GPM
Language: English, ltalian, Spanish,Russian Japanese, Korean, etc.

magmeter measure the volume flow, flow rate, and temperature with very precise measurement results for optimized processes. our calibration lab has been approved CNAS ISO/IEC 17025:2017. Q&T Instrument has large stock fro varous flanges for different water flow meters, like magnetic fflow meter, turbine flow meter, oval gear flow meter, etc.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Electromagnetic flowmeters. Measuring for process management, revenue collection, liquid transportation and energy conservation. water flow meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic flowmeter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.

Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

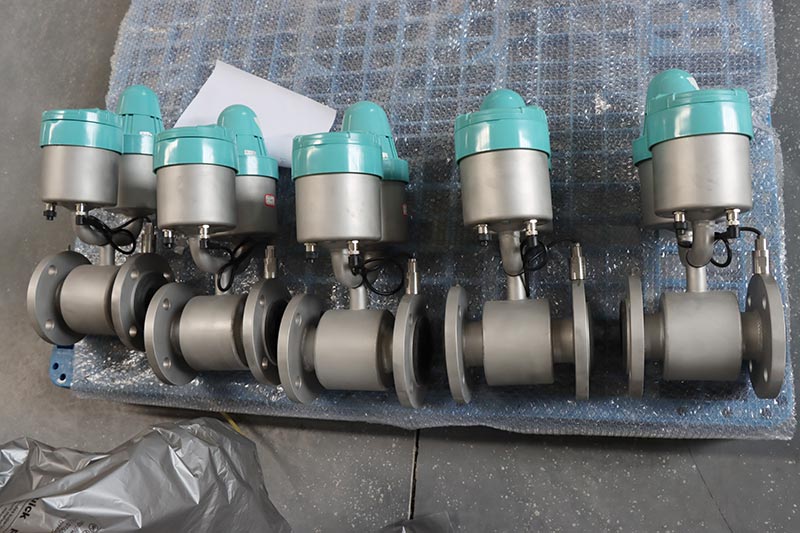

Electromagnetic water meter is powered by an internal battery. It is suitable for situations where the field grid cannot be reached and the grid is difficult to lay. It is especially suitable for the
monitoring, calculation and settlement of the tap water supply system.
Measuring Range :0~12m/s ;
Conductive Ratio of the Medium :5¦Ìs/cm
Medium Temperature : -10¡æ~55¡æ ;
Power Supplied : 3.6V DC in-built Lithium ion battery power supplied , continually working for more than three years.

Q&T Instrument has different equipment, like CNC, high and low temperature test for transmitters, pressure test for sensorns. QTLD electromagnetic flowmeter is 1/2″~120″, flange can be DIN, ANSI, JIS or othters.inline magnetic flow meter is calibrated on ¡À0.2% calibration device, so accuracy of electromagnetic flowmeter can be up to ¡À0.2%. the magnetic flow meter is configured 4~20 mA, pulse and RS485 modbus
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

Battery power magnetic flow meter is designed for calibration of flow meters under controlled and stable flow conditions.Battery power mag flow meter provide obstruction free flow measurement. Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

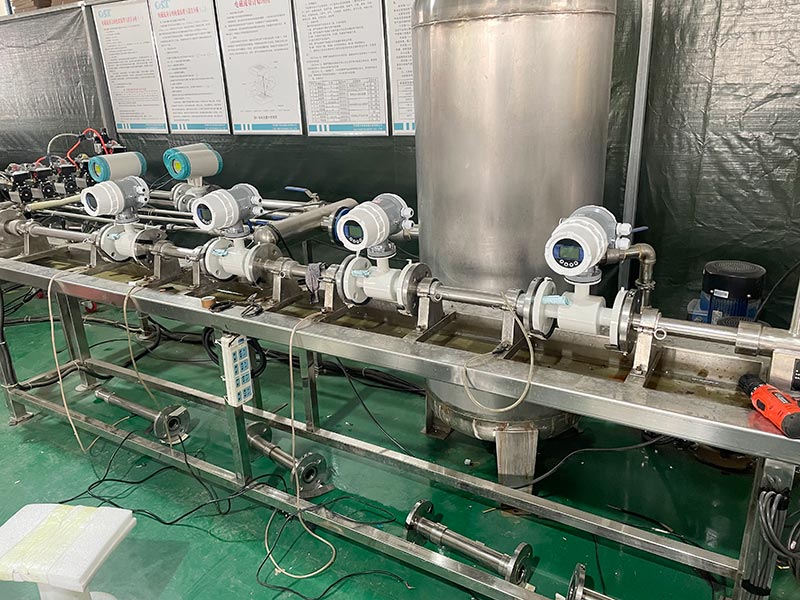

Q&T have 8 sets calibration device for liquids magnetic energy meter and 5 sets calibration equipments for gas. our calibration lab has been approved CNAS ISO/IEC 17025:2017, mag flowmeter can be delivered within 6 days for DN3-DN3000, electromagnetic water meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic flowmeter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

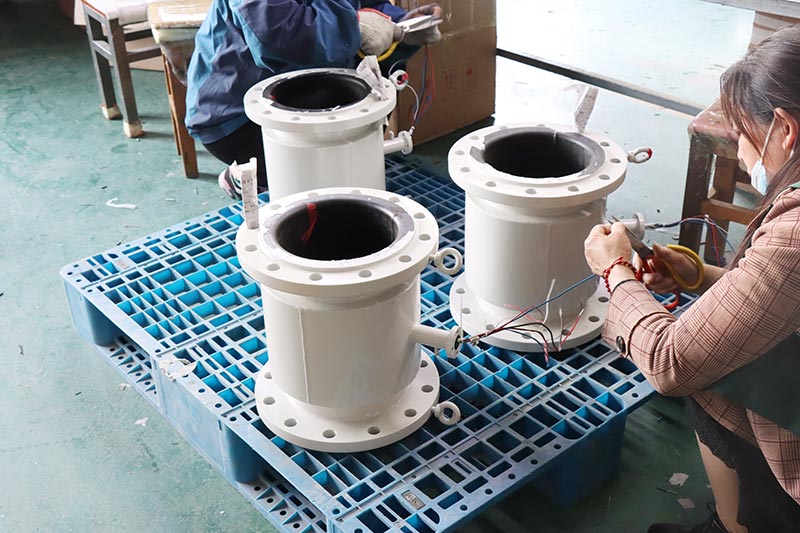

water flow meter can be submerged in the water or buried underground, standard cable length is 10m, 5 points are calibrated. electromagnetic flowmeter is calibrated by Mass Method liquid calibration equipment, which is approved by CNAS ISO 17025, which is mutual recognition by ilac-MRA .
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

protection grade of electromagnetic flow meter sensor is IP68 for split type and IP65 for integrated mag flowmeter. QTLD series electromagnetic flowmeters represent the state-of-the-art for accurate measurement in water cycle and process applications. This new-generation meter incorporates improvements to the magnetic distribution elements that allow accurate operation throughout all flow regimes.

Size: DN3-DN3000
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

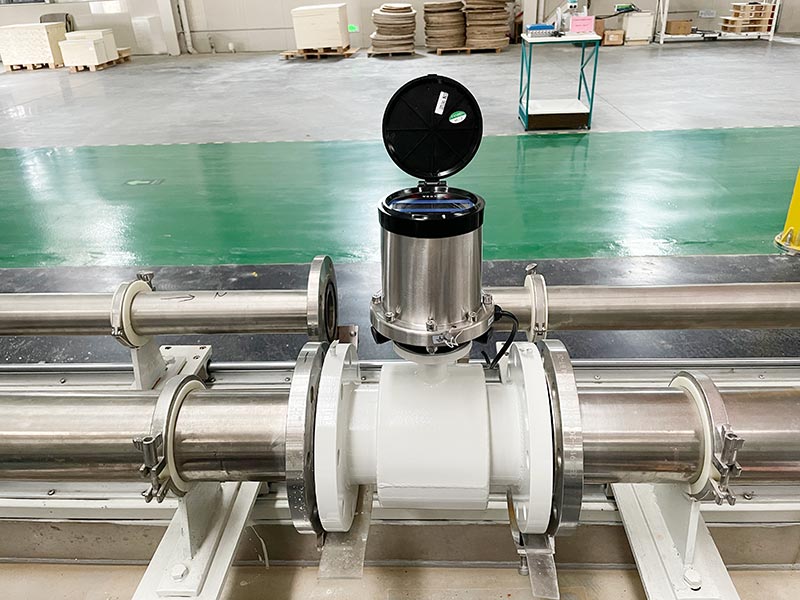

3.6V battery powered magnetic flow meter could reach IP68 protection,3.6V battery powered mag flow meter could put under water for long time, flow meter also have external DC12-24V power. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM (Optional);

Electromagnetic water meter is high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits.
Electromagnetic water meter use a magnetic field to generate and channel liquid flow through a pipe. It have high accuracy and stability. The battery’s working life is mor than 8 years.

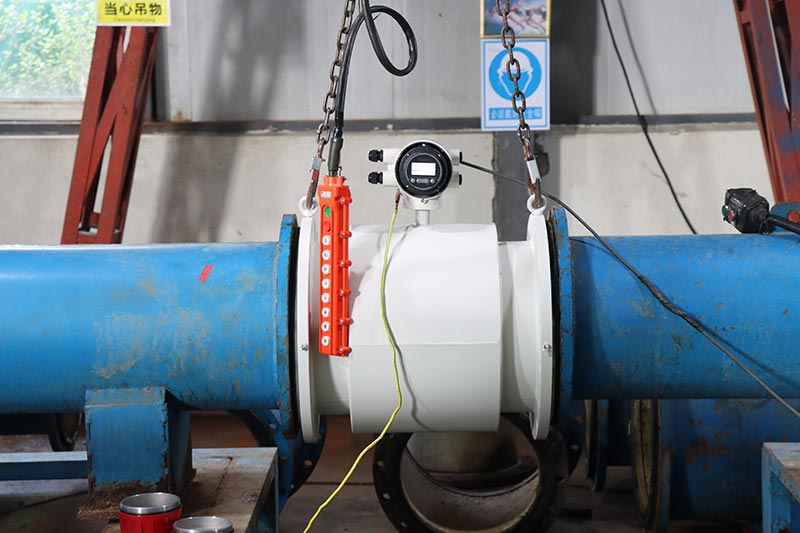

Q&T’s magnetic flowmeter battery each set will have well calibrated before leave factory, mag flow meter battery adopt pulse calibration, with weighing method, guarantee the 0.5% accuracy. Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Ambient Temperature: -20¡æ~+ 60¡æ; Ambient Humidity: 5-100% RH (relative humidity); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA/pulse (optional);

magmeter is composed by convertor and sensor. standard configuration is carbon steel sensor, SS316L electrodes and PTFE liner. water flow meter 41 calibrator simulates the signal provided by the electrodes in the flow tube. liquid flow meters are calibrated by mass method, comparison method, The operating voltage and frequency range of the calibrator must match those of the magnetic flowmeter. Select the maximum output signal using the calibrator range switch.

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Measuring tube: SS304

magmeter is mainly used in pharmaceutical industry, in water treatment or in food production: If conductive media such as cooling water are added to a process, standard cable is 10m, max length is 120m, electromagnetic flow meter is mainly used to measure beverage. liner can be PTFE or rubber, our magnetic flow meter have been approved CE-LVD, CE-EMC, ATEX, NSF, tec. it can mag flowmeter is calibrationed 5 points.

Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

3.6V battery meter satisfy water fee calculation with high accuracy, DC3.6V powered electromagnetic flow meter is widely used in applications without power grid, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

magnetic flowmeter has a large measurement scale, usually 10:1, and the optional flow scale is wide. The liquid flow velocity of the full scale value can be selected within 0.5¡«10m/s. Some types of instruments can be expanded and reduced on-site according to the needs (for example, there is a 4-digit potentiometer to set the instrument constant) without removing them for offline real-flow calibration..

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

Electromagnetic water meter is widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.

Measurement of magmeter is independent of fluid density, viscosity, temperature, pressure, and conductivity. Two measuring points inside the meter with no moving parts to eliminate pressure drop, Capable of measuring electric conductive liquid and fluids with low solid contents. water flow meter is calibrated by Mass Method liquid calibration equipment, which is approved by CNAS ISO 17025, which is mutual recognition by ilac-MRA.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

With simple structure ,the flow meter is of high reliability without lining in the
measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between
DN2 and DN600.
Measurement is independent of fluid density ,viscosity ,humidity ,temperature
pressure and conductivity.

No Moving Parts
RS485 Standard,HART standard is available.
Suitable for Pipes Up to DN300
Pulse, Gprs output
Standard 5 points calibration Included
