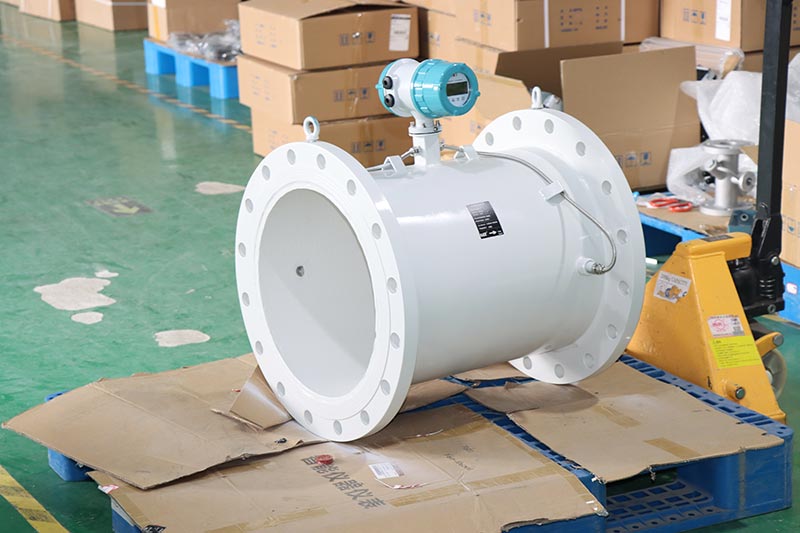

Inline ultrasonic flow meter could connect temperature sensor to become one calorimeter and widely be used in Process control, Production measurement, Trade settlement.
Ultrasonic flow meter mianly fro Condensate, Boiler feed water,Drink water etc
Input:Two-wire PT1000
Output:4-20mA,Pulse,OCT
Communication:RS485
Transmitter working temperature:-10~70¡æ
Sensor wotking temperature:-30~150

Widely used in Running water,Heating, Water conservation,Metallurgy,Chemical industry,Machinery,Energy etc.

Wall mounted ultrasonic flow meter clamp on transducer is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter includes two transducers, which act as ultrasonic transmitters and receivers. The transducer can be installed in a v-type method, where the sound travels through the pipe twice, a w-type method, where the sound travels through the pipe four times. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

4-20mA Output Ultrasonic Water Flow Meter BTU meter is designed to work with clamp-on transducers to enable the flow of a liquid within a closed pipe to be measured accurately without needing to insert any mechanical parts through the pipe wall or protrude into the flow system.

Q&T Factory PLCM open channel flow meter work together with Rectangular weir, it is cost effective Open Channel Measuring Instrument, excellent choice for open channel Ultrasonic Water Flow Meter.
Display: Backlight LCD
The maximum of Accumulative Flow: 9999999.9 m3/h
Accuracy of Change in Level: 1mm or 0.2% of full span (whichever is greater)
Resolution: 1mm
Analogue Output: 4-20mA, corresponding to instantaneous flow
Relays Output: Standard 2 relay outputs(Optional up to 6 relays)
Serial Communication: RS485, MODBUS -RTU standard protocol
Ambient Temperature: -40 ~70 Degree C
Power Supply: DC24V (+5%) 0.2A; AC220V (+20%) 0.1A ;Optional DC12V

Portable handheld digital ultrasonic flowmeters, clamp-on sensors to measure liquid flow. Installation process is very simple, all Chinese human-machine interface, more easy to operate. Particularly suitable flow balance testing and flow monitoring: drinking water, river water, sea water, cooling water, hot water, industrial waste water, lubricating oil, diesel oil, fuel oil, chemical liquids. Accuracy: +/-1.0% of FS Wide range: DN300mm-DN6000mm Measuring clean liquids Built-in rechargeable battery 3.6V 2000 lines storage Communication: RS232

Protable Ultrasonic Water Flowmeter Price,Ultrasonic Flow Meter is a portable liquid flow measurement device with a sensor. Protable Ultrasonic Water Flowmeter Price,Ultrasonic Flow Meter adopt transit-time ultrasonic measurement technology for superior accuracy and ease of installation and installation. This easy-to-use flowmeter comes in a rugged, waterproof carrying case for easy transport of the display, sensor, and cables between measurement locations. High accuracy +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

QT811 clamp on ultrasonic flow meter is a type of non-invasive flowmeters work on the transit time ultrasonic principle. This involves sending and receiving ultrasonic pulses from a pair of sensors and examining the time difference in the signal. Suitable for various liquids and compatible with various pipeline materials and sizes.

Pipe Size:?DN15-DN40mm (1/2¡±~1 1/2¡±)
Flow Range:¡À0.1m/s ~¡À5m/s
Temperature: 0~75¡æ (standard)
Output: 4-20mA, OCT Pulse, RS485
Accuracy:?¡À1% of measured value
Power Supply: DC10-24V

QT621 ultrasonic water flow meter support is widely used in oil industry, water treatment, pure water, chemical and etc. Adopt the technology of transit time, ultrasonic waves transmitted and received through moving liquid. The difference between upstream and downstream transit time can be used to calculate flow and velocity.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

Ultrasonic flow meter is one kind of water flow meter which accuracy less than 1.0%
Flange type ultrasonic flow meter no moving parts, no wear, no pressure loss,Maintenance-free and can measure conductivity liquid and Non-conductivity liquid.
2 way analogy input could transmit flow,pressure,temperature,pressure etc

wall-mounted digital display industrial ultrasonic flow meter sea water ultrasonic flowmeter consists of two parts: a transmitter unit and a transducer. Magnetic external clamps on the sensor are easy to install and connect to metal tubing for continuous flow measurement. It is especially suitable for on-site flow measurement of various pressure requirements. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Ultrasonic flow measurement according to the ¡°differential transit time¡± method: This method uses two sensors, set opposite each other in the measuring tube. Each sensor can alternately transmit and receive ultrasonic signals, while simultaneously measuring the signal transit time.
Bi-directional flow measurement
Backlit LCD
Measuring up to 100 times/s
Accuracy:¡À0.5%

Transmitter and transducer install seperately.Transmitter can install at indoor,Instrument cabinet,Dashboard.

Q&T brand pulse output ultrasonic flow meter is one kind of economy type flow meter for liquid,multi channle type inline ultrasonic flow meter accuracy less 0.5%
Inline ultrasonic flow meter support single channel and multi-channel at the same time,when one of channel is abnormal or not connected,it can automatically switch to single channel to working
OCT output
RS485 communication
Input:Two-wire PT1000

Clamp on BTU energy flow meter could add the RTD model and temperature sensor become an energy meter to monitoring the energy use, help to save the energy. While the output of totalizer pulse and frequency output are transmitted via relay and open collector.
Pipe size:25~1200mm
Accuracy:±1.0%
Output:4-20mA,RS485
Transducer protect:IP68
Power supply:24VDC

LCD display Clamp on Portable ultrasonic flowmeter is a wide used time difference ultrasonic flowmeter. It is small and light, the installation process is extremely simply and easy to operate. The design of rechargeable battery and universal power supply enables you to realize pipeline measurement anytime and anywhere.
The portable ultrasonic flowmeter consists of two parts: transmitter unit and transducer. The magnetic external clamp on transducer is easy to insntall and can be attached to a metal pipe for continuous flow measurement. It is especially suitable for on-site flow measurement with various pressure requirements.
Measuring accuracy: +/-1.0% of FS
Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC
Measuring clean liquids
Battery-powered,for 12 hours
Communication: RS232

QT811 clamp on type ultrasonic flow meters suitable for various liquids and compatible with various pipeline materials and sizes.
Specially external clamp design, QT811 clamp on ultrasonic energy BTU meter could
get the flow rate without touch the measurement medium.
Compared with other traditional type flow meters, QT811 clamp on ultrasonic meters could avoid
pressure loss or media contamination problems.

Pipe Size:?DN15-DN40mm (1/2¡±~1 1/2¡±)
Flow Range:¡À0.1m/s ~¡À5m/s
Temperature: 0~75¡æ (standard)
Output: 4-20mA, OCT Pulse, RS485
Accuracy:?¡À1% of measured value
Power Supply: DC10-24V

QT811 adopts a new external clamp design, which could get the flow rate without touch the measurement medium. Clamp on ultrasonic flow meter is optional to become an ultrasonic cooling (heat) meter/ btu meter/ energy meter to realize the monitoring and measurement of energy. As the advantage of a clamp on flow meter, no need to cut off the pipe or long time stop the equipment, save the cost of time and labor costs.

Pipe Size:?DN15-DN40mm (1/2¡±~1 1/2¡±)
Flow Range:¡À0.1m/s ~¡À5m/s
Temperature: 0~75¡æ (standard)
Output: 4-20mA, OCT Pulse, RS485
Accuracy:?¡À1% of measured value
Power Supply: DC10-24V

Ultrasonic Flow meter for applications in clean water and in low conductivity media. Operating principle based on
transit time measurement.
Bi-directional flow measurement over a wide dynamic range.
Applications with conductive or non-conductive liquids for many industrial
No moving parts, no wear, no pressure loss,Maintenance-free

QT811 small pipe size type ultrasonic clamp on flow meters are with user-friendly design.QT811 adopts a new external clamp design, which could
get the flow rate without touch the measurement medium.
Compared with other traditional flow meter, this could avoid
pressure loss or media contamination problems.

Pipe Size:?DN15-DN40mm (1/2¡±~1 1/2¡±)
Flow Range:¡À0.1m/s ~¡À5m/s
Temperature: 0~75¡æ (standard)
Output: 4-20mA, OCT Pulse, RS485
Accuracy:?¡À1% of measured value
Power Supply: DC10-24V

Portable Clamp on Sensor Digital Ultrasonic Flow Meter are widely used in tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy and other industries. It can be used for production monitoring, flow verification, temporary detection, flow inspection, water meter balance debugging, heat network balance debugging, and energy-saving monitoring. It is a tool instrument for timely flow detection. This ultrasonic flowmeter has a built-in data logger. The built-in data logger has a space of 24K bytes and can store 2000 lines of measurement data. The rechargeable power supply has a built-in high-capacity nickel-metal hydride rechargeable battery, which can support the flowmeter to work continuously for more than 12 hours. Measuring accuracy: +/-1.0% of FS Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC Measuring clean liquids Battery-powered,for 12 hours Communication: RS232

This open Channel flow meter waste water has wide application, it can be used for continuous measuring of municipal rain-water, wastewater, sewage discharge and irrigation water pipelines. This Open Channel flow meter measures level, flow rate and total volume of water flowing through weirs, flumes, and channels etc.

Specifications:
Display: Backlight?LCD
Flow?Rate?Range: 0.0000~99999L/S?or?m3/h
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Accuracy?of?Change in Level: 1mm?or?0.2%?of?full?span?(whichever?is?greater)
Resolution: 1mm
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol

Clamp flow meter fixed sewage ultrasonic flowmeter cutting required. The user simply clamp on the flow sensor to the pipe surface. Clamp flow meter fixed sewage ultrasonic flowmeter can then detect the flow through ultrasonic waves, and then automatically calculate the flow rate value, flow accumulator, etc. No pipe cutting means no damage to the pipe. So as long as the pipes are in good condition, the installation on the flowmeter will not provide the possibility of leakage. Sensor: Clamp-on/External Principle: transmit time Size: DN15mm-DN6000mm Measuring medium: Liquid 3.6V Battery-powered

Sewage and rainwater are often transported to the treatment plant in open collection channels or flumes.This open Channel flow meter is good for this application, it can be used for continuous measuring of municipal rain-water, wastewater, sewage discharge and irrigation water pipelines.

Specifications:
Display: Backlight?LCD
Flow?Rate?Range: 0.0000~99999L/S?or?m3/h
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Accuracy?of?Change in Level: 1mm?or?0.2%?of?full?span?(whichever?is?greater)
Resolution: 1mm
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol

Wall Mounted Ultrasonic flow sensor Water Clamp on flow meter consists of two parts: a transmitter unit and a transducer. Magnetic external clamps on the sensor are easy to install and connect to metal tubing for continuous flow measurement. It is especially suitable for on-site flow measurement of various pressure requirements. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

Inline ultrasonic flow meter could connect temperature sensor to become one calorimeter and widely
be used in Process control, Production measurement, Trade settlement and is suitable for continuously measuring flow and heat of clean and uniform liquids without large concentration suspended particles or gases industrial environment¡£
Support single channel and multi-channel at the same time,when one of channel is abnormal or not connected,it can automatically switch to single channel to working .

Modular type ultrasonic flow meter is one type of ultrasonic flow meter.It has very small size and easy to be installed into instrument box. This type flow is working with clamp type transducer normally. The max measure tube is DN3000 pipe. It have 4-02mA, pulse, and RS485 output also.It even could link with temperature sensor and work as ultrasonic BTU meter.
Accuracy: ±1%
Velocity: 0.5s
Display: LCD with backlight 2*20leters
Signal Outputs: 4-20mA or o-20mA,RS485,Pulse
Liquid Types: Virtually all commonly used liquids
Pipe Size: DN15-DN3000

This Industrial waste water treatment flow meter measures level, flow rate and total volume of water flowing through weirs, flumes and channels. The flow meters use a non-contact level sensor. Application field£º
1. Water and sewage treatment£ºpump room, collection well, biochemical reaction
tank, sedimentation tank.
2. Electricity, mines£ºmortar pool, coal slurry pool, butter storage tank, stockyard
or some mobile equipment control, etc.
3. Food industry£ºwineries, granaries, storage tanks for food materials, etc.

Specifications:
Display: Backlight?LCD
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Resolution: 1mm
Analogue?Output: 4-20mA
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS RTU
Ambient?Temperature: -40 ~70 Degree C
Power?Supply: DC24V, AC 220V£»Optional?DC12V

QT621 ultrasonic flow meter is a type of portable flow meter with the main advantage of support to be easily moved and installed in different pipes and convenient to carry site to site. Portable type ultrasonic flow meters are widely used in all areas such as drinking water and sewerage industry, power plants, producing industry, food industry and so on.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

QT621 ultrasonic flow meter is a type of portable flow meter, main advantage is that the meter can be easily moved and installed in different pipes and convenient to carry site to site. Portable ultrasonic flow meter support precise bidirectional and highly dynamic flow measurement
with the non-invasive clamp-on technology.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68
