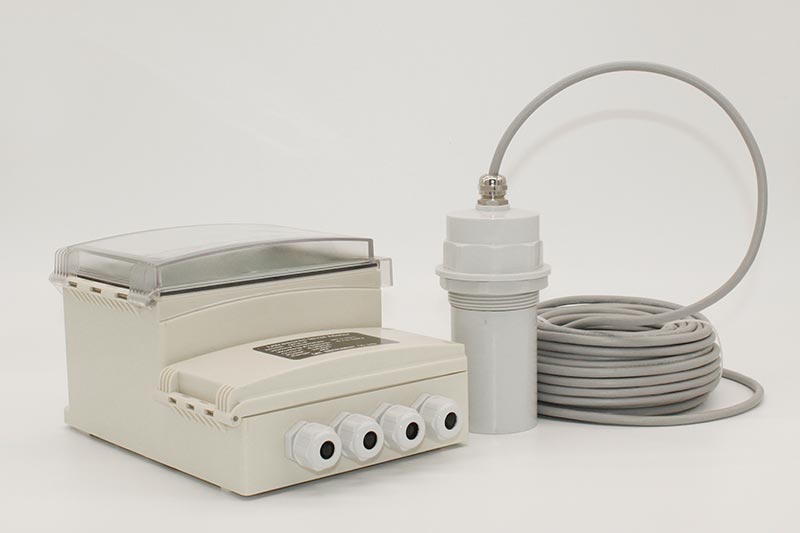

The Q&T Open channel flow meter using transit-time principle, it is an economical ultrasonic flowmeter specifically designed for open channel. Compared with other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption and high certainty. At the same time, with non-contact level sensor, it also have the feature of installation simple easy to use, non need water supply shutdown etc.

Specifications:
Display: Backlight?LCD
Flow?Rate?Range: 0.0000~99999L/S?or?m3/h
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Accuracy?of?Change in Level: 1mm?or?0.2%?of?full?span?(whichever?is?greater)
Resolution: 1mm
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol

QT811 DN15-40mm clamp on flow meter is a new designed external clamp on measurement flow meter. Clamp on ultrasonic flow meter adopt non-invasive flow measurements, This involves sending and receiving ultrasonic pulses from a pair of sensors and examining the time difference in the signal. Clamp on flow meter support monitor the flow rate reading directly on the device.

Pipe Size:?DN15-DN40mm (1/2¡±~1 1/2¡±)
Flow Range:¡À0.1m/s ~¡À5m/s
Temperature: 0~75¡æ (standard)
Output: 4-20mA, OCT Pulse, RS485
Accuracy:?¡À1% of measured value
Power Supply: DC10-24V

Ultrasonic flowmeters use sound waves to determine the velocity of a fluid flowing in a pipe.
Inline type ultrasonic flow meter can be OEM,such as Body color,Transmitter color,Channle number,Logo display etc.
Q&T brand ultrasonic flow meter is one kind of economy type flow meter for liquid,multi channle inline ultrasonic flow meter can reach 0.5% accuracy.
2 way input
SS304 body
Flow velicity:0.1~¡À10m/s
Integral display
Accuracy:¡À1.0%
Single channel or multi channel

QT811 ultrasonic flow meter adopts a new external clamp design, which could get the flow rate without touch the measurement medium. As the advantage of a clamp on flow meter, no need to cut off the pipe or long time stop the equipment, save the cost of time and labor costs. Easily and friendly for installation and operation, QT811 could not only work as flow meter, but also BTU meter to realize the monitoring of flow and energy.

Pipe Size:?DN15-DN40mm (1/2¡±~1 1/2¡±)
Flow Range:¡À0.1m/s ~¡À5m/s
Temperature: 0~75¡æ (standard)
Output: 4-20mA, OCT Pulse, RS485
Accuracy:?¡À1% of measured value
Power Supply: DC10-24V

Precise digital display insertion clamp on ultrasonic water flow meter Wall mounted ultrasonic flowmeter is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is a non-contact, clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter employs two transducers, which act as ultrasonic transmitters and receivers. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

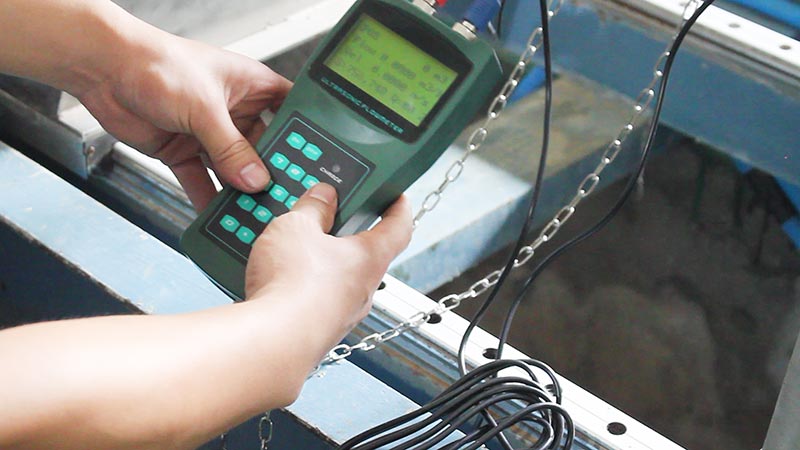

Ultrasonic Flow meter handheld clamp on flowmeter no pipe cutting required. The user simply clamp on the flow sensor to the pipe surface. Ultrasonic Flow meter handheld clamp on flowmeter can then detect the flow through ultrasonic waves, and then automatically calculate the flow rate value, flow accumulator, etc. No pipe cutting means no damage to the pipe. So as long as the pipes are in good condition, the installation on the flowmeter will not provide the possibility of leakage. Sensor: Clamp-on/External Principle: transmit time Size: DN15mm-DN6000mm Measuring medium: Liquid 3.6V Battery-powered

QT811 external clamp on ultraonic flow meter is an easy operation instrument for non-invasive, quick flow and energy measurement with clamp-on technology for many types of pipings.QT811 clamp on flow meter support user to monitor the flow rate reading directly on the device. With various kinds of outputs signals, could send the information to PLC,
central control room and etc.

Pipe Size:?DN15-DN40mm (1/2¡±~1 1/2¡±)
Flow Range:¡À0.1m/s ~¡À5m/s
Temperature: 0~75¡æ (standard)
Output: 4-20mA, OCT Pulse, RS485
Accuracy:?¡À1% of measured value
Power Supply: DC10-24V

QT621 ultrasonic flow meter is a portable type flow meter for non-invasive, quick flow and energy measurement with clamp-on technology for many types of piping. Portable ultrasonic flow meter support powerful data storage and also support the data sheet analysis software. Portable type ultrasonic flow meter can be easily moved and installed in different pipes and convenient to carry site to site.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

Wall mounted and handhold portable clamp on ultrasonic water flow meter battery ultrasonic flowmeter adopts the self-development measurement technology.This measurement technique is a faster and more accurate process time measurement algorithm. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

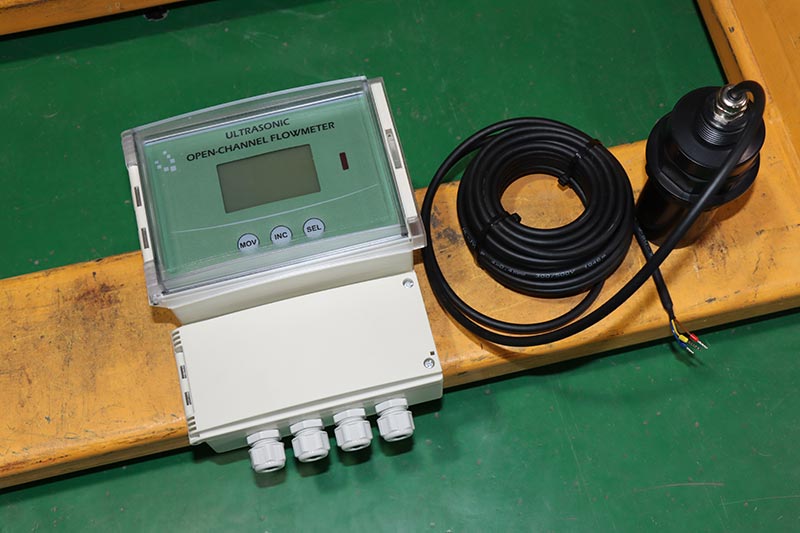

Q&T Factory PLCM open channel flow meter work together with Rectangular weir, it is cost effective Open Channel Measuring Instrument, excellent choice for open channel Ultrasonic Water Flow Meter.
Display: Backlight LCD
The maximum of Accumulative Flow: 9999999.9 m3/h
Accuracy of Change in Level: 1mm or 0.2% of full span (whichever is greater)
Resolution: 1mm
Analogue Output: 4-20mA, corresponding to instantaneous flow
Relays Output: Standard 2 relay outputs(Optional up to 6 relays)
Serial Communication: RS485, MODBUS -RTU standard protocol
Ambient Temperature: -40 ~70 Degree C
Power Supply: DC24V (+5%) 0.2A; AC220V (+20%) 0.1A ;Optional DC12V

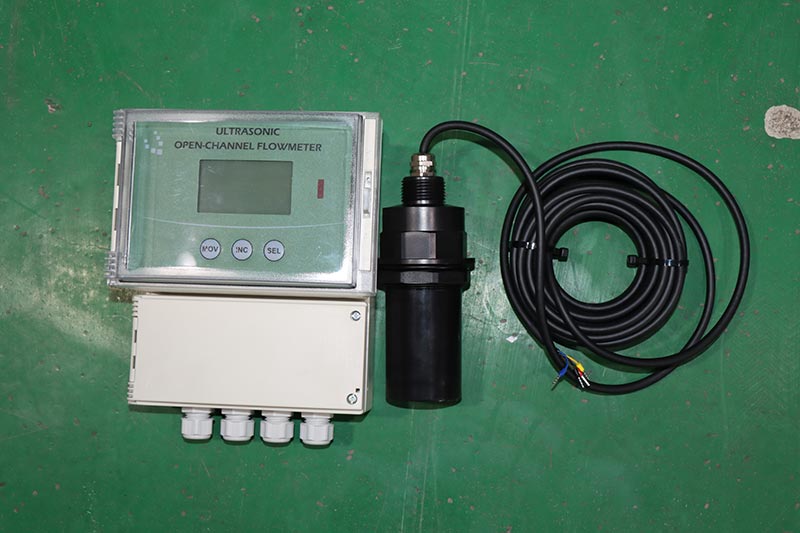

The PLCM industrial waste water treatment flow meter using transit-time principle, it is an economical ultrasonic flowmeter specifically designed for open channel. Compared with other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption and high certainty. At the same time, with non-contact level sensor, it also have the feature of installation simple, easy to use, no need water supply shutdown etc.

Specifications:
Display: Backlight?LCD
Flow?Rate?Range: 0.0000~99999L/S?or?m3/h
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Accuracy?of?Change in Level: 1mm?or?0.2%?of?full?span?(whichever?is?greater)
Resolution: 1mm
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol

Wall mounted ultrasonic water flowmeter clamp on ultrasonic flow meter provide you with an accurate, easy-to-install flow meter. wall mount flow sensor feature quick, easy clamp-on sensor installation, configuration, and a user-programmable menu-driven interface for easy commissioning in the field. Wall mounted ultrasonic water flowmeter clamp on ultrasonic flow meter use a special algorithm and technology to ensure highly accurate flow measurement. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring single clean liquids Power supply: 24VDC/85VAC-2265AC Storage: SD card optional Heat meter optional

PN16 Flowmeter Water Wall Mounted Clamp On Ultrasonic Flow Meter Digital Water proven transit-time ultrasonic measurement technology .This technology can be used for permanent installations where intrusive flow meters are not economically viable for permanent installations on large pipelines and for all the different process fluids encountered in the network. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

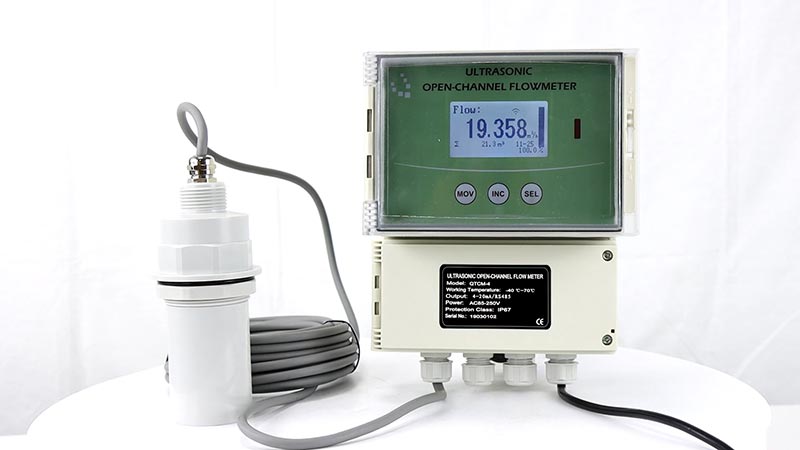

PLCM open channel flow meter is LCD display, it is a good choice for waster water, rive, channel flow measuring, We can do high quality OEM for you.
Display: Backlight LCD
The maximum of Accumulative Flow: 9999999.9 m3/h
Accuracy of Change in Level: 1mm or 0.2% of full span (whichever is greater)
Resolution: 1mm
Analogue Output: 4-20mA, corresponding to instantaneous flow
Relays Output: Standard 2 relay outputs(Optional up to 6 relays)
Serial Communication: RS485, MODBUS -RTU standard protocol
Ambient Temperature: -40 ~70 Degree C
Power Supply: DC24V (+5%) 0.2A; AC220V (+20%) 0.1A ;Optional DC12V

Digital ultrasonic flow meter also adopt time-transit technology,enjoy higher accuracy and better stability compare with 1st generation ultrasonic flow meter,with 4-20mA,relay output. Communication: RS232/RS485 Mod bus:
Power supply:10~36VDC/1A;
Display:240*128 back lit LCD;
Temperature:Transmitter: -14℉~140℉(-20℃~60℃),Transducer: -40℉~176℉(-40℃~80℃,standard); Humidity:Up to 99% RH, non-condensing;

China factory RS485 module clamp on ultrasonic flow meter is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is a non-contact, clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter employs two transducers, which act as ultrasonic transmitters and receivers. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

A handheld ultrasonic flowmeter is a low-cost portable device with a sensor for non-invasive liquid flow measurement. This handheld ultrasonic flowmeter utilizes proven time difference ultrasonic measurement technology for excellent accuracy and ease of setup and installation.
This easy-to-use flowmeter comes with a sturdy, waterproof carrying case that allows easy transport of the display, sensor, and cables between measurement locations.
Measuring accuracy: +/-1.0% of FS
Transducer temperature: -30~90¡ãC/-30¡ãC~160¡ãC
Measuring clean liquids
Battery-powered,for 12 hours
Communication: RS232

Pipeline ultraosnic flow meter directly contact the liquid and make the measuring accuracy better than clamp on ultrasonic flowmeter.And installation easy,don’t need calculate the sensor installation distance and cover the coupling agent in the pipe,so this meter can collect the signal very well.
Szie:DN15~DN6000
Accuracy:¡À1.0 %
Viscosity:0.1~10m/s
Measuring cycle:50mS
Output:4~20mA,Pulse,OCT,RS485
Body material:Standard carbon steel,SS304 and SS316 are optional
Power supply:DC24V and AC220V
Connection way:Flange type
Media temperature :-30~+150¡æ

Economic ultrasonic flow meter not only could measure the total flow,flow velocity,flow rate,but also clamp-on ultrasonic flow meter could measure the heat/energy of the liquid.
Pipe size:1″ to 48″ (25mm to 1200mm).Pipe size under 1″ is an option;
Fluid:Water or others;
Flow range:± 0.09ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s);
Outputs:Analog output:4~20mA,max load 750Ω,Pulse output: 0~10KHz;
Communication: RS232/RS485 Modbus:

Widely used in Running water,Heating, Water conservation,Metallurgy,Chemical industry,Machinery,Energy etc.

Plastic Ultrasonic Liquid flow Meter sensors can be mounted outside, plug-in, pipeline-type installation; Used for measuring liquids, such as ultrapure liquids, chemicals, raw sewage, reclaimed water, cooling water, river water, plant sewage, etc.
Protection: IP57
Power supply: 8-36VDC
Output: RS485,4-20mA and OCTPipe diameters from 15mm to 6000mmDisplay: 2¡Á20 English letters LCD
Keypad: 4 key tactile-feedback membranelnput:4-20mA and PT100 platinum resistancelnstallation: Operate with clamp on, insertion and
flow-cell transducer

Digital Wall mounted clamp on ultrasonic flow meter proven transit-time ultrasonic measurement technology This technology can be used for permanent installations where intrusive flow meters are not economically viable for permanent installations on large pipelines and for all the different process fluids encountered in the network. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

clamp on ultrasonic portable liquid flow meter is controlled by a micro-processor system which contains a wide range of data that enables it to be used with pipes with an outside diameter ranging from 15mm up to 1200mm (depending on model) and constructed of almost any material. instrument will also operate over a wide range of fluid temperatures.

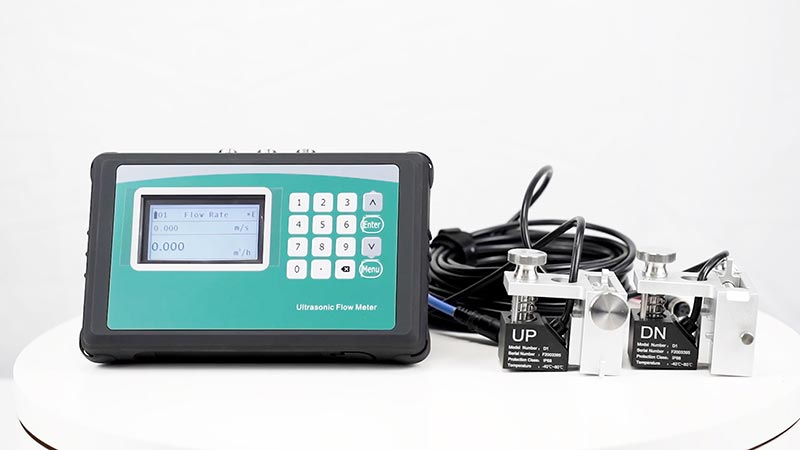

Q&T portable ultrasonic flow meters involves sending and receiving ultrasonic pulses from a pair of sensors and examining the time difference in the signal. Portable ultrasonic flow meter can be easily moved and installed in different pipes and convenient to carry site to site, which is very convenient for users to monitor the data.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

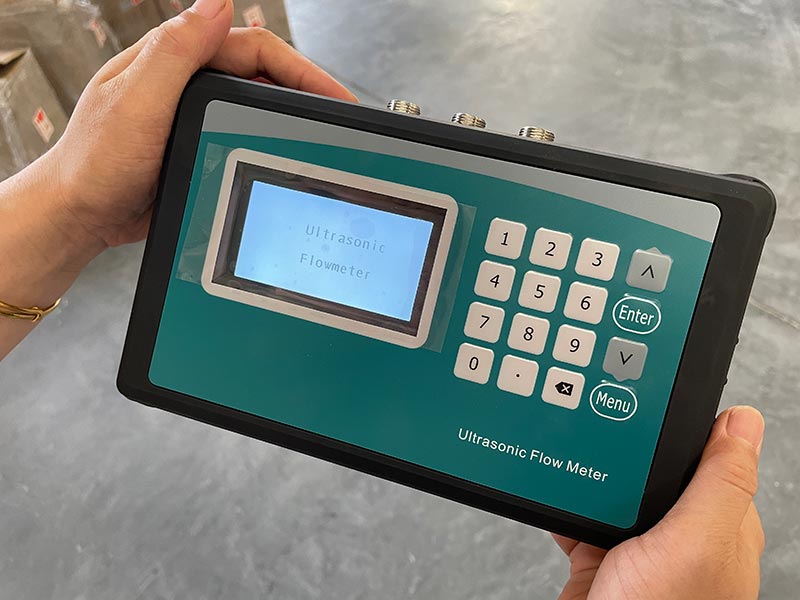

QT621 portable type ultrasonic clamp on flow meters support quickly verify the reading of another meter and to data log flow system values over an extended time period.
Portable ultrasonic flow meters can be easily moved and installed in different pipes and convenient to carry site to site, which is very convenient for users to monitor the data.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

Sincerity Ultrasonic Flow Meter Clamp Wall Mount Water Flow Sensor Ultrassonic Flow Meter For Liquid is an ultrasonic flowmeter used to measure the flow rate of liquids in closed pipes. The transducer is a non-contact, clamp-on type, which will provide the benefits of contamination-free operation and ease of installation. The transit time flowmeter employs two transducers, which act as ultrasonic transmitters and receivers. Accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Power supply: 24VDC/85VAC-2265AC Communication: RS485

The Q&T solar power Open channel flow meter using transit-time principle, it is an economical ultrasonic flowmeter specifically designed for open channel. Compared with other ultrasonic flow meters on the market, it has the characteristics of high reaction rate, low power consumption and high certainty. At the same time, with non-contact level sensor, it also have the feature of installation simple easy to use, non need water supply shutdown etc.

Specifications:
Display: Backlight?LCD
Flow?Rate?Range: 0.0000~99999L/S?or?m3/h
The?maximum?of Accumulative Flow: 9999999.9?m3/h
Accuracy?of?Change in Level: 1mm?or?0.2%?of?full?span?(whichever?is?greater)
Resolution: 1mm
Analogue?Output: 4-20mA,?corresponding?to?instantaneous?flow
Relays?Output: Standard?2?relay?outputs(Optional?up?to?6?relays)
Serial?Communication: RS485,?MODBUS?-RTU?standard?protocol

Liquid Handheld Drinking Water Ultrasonic Flow meter Plastic can be easily installed, removed and transported. This makes them ideal for industrial applications that are already operational or only require occasional flow measurement. In the latter case, the user can use the same clamp on flowmeter to measure flow in multiple locations by unloading and transporting the device for each measurement
Measuring accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Built-in rechargeable battery 3.6V Communication: RS232

QT621 Portable ultrasonic flow meter support configurable for flow and thermal energy measurement. Portable ultrasonic water flow meter mainly consists of two parts, transmitter and transducer. With 4-20mA and RS485 communication available, QT621 ultrasonic flow meter support quickly verify the flow reading of another meter and to data log flow system values over an extended time period.

Size: 1¡å~48¡å(25mm~1200mm)
Flow Range:¡À0.01 m/s~ ¡À12 m/s
Accuracy: ¡À1%
Repeatability: 0.2%
Output: 4-20mA, RS485
Power supply: Internal lithium 3000mAh
Transducer: IP68

Liquid Handheld Drinking Water Ultrasonic Flowmeter measurement can be easily installed, removed and transported. This flowmeter makes them ideal for industrial applications that are already operational or only require occasional flow measurement. In the latter case, the user can use the same clamp on flowmeter to measure flow in multiple locations by unloading and transporting the device for each measurement Measuring accuracy: +/-1.0% of FS Wide range: DN15mm-DN6000mm Measuring clean liquids Built-in rechargeable battery 3.6V Communication: RS232
