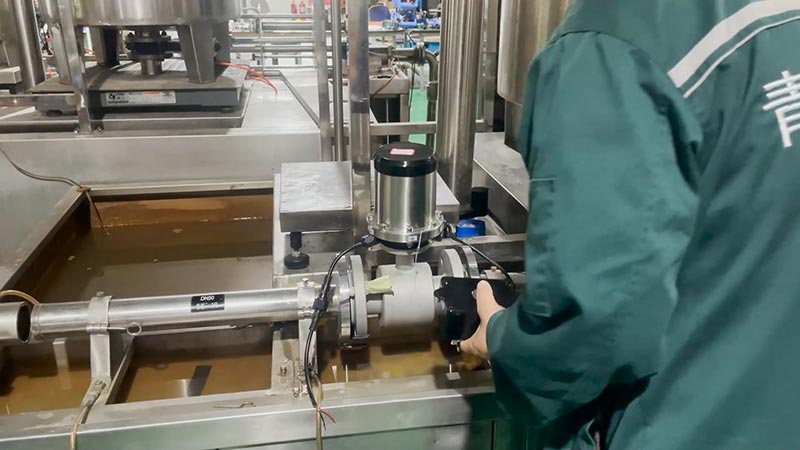

Triclamp sanitary connection Fast delivery 3.6V battery powered electromagnetic flowmeter

magmeter is calibrated on ¡À0.2% accuracy liquid calibration device, electromagnetic flowmeter is calibrationed 5 points. our calibration lab has been approved CNAS ISO/IEC 17025:2017. magmeter is calibrated by MT methoud water flow standard calibration device, mass method, comparison method and pulse method can be used, standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

mag flowmeter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. liquid flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

liner of tri-clamp electromagnetic flow meter is PFA, which is approved NSF, tri-clamp standard is 3A, 11851 is optional. QTLD/Ttri-clamp magnetic flow meter is designed for sanitary applications, size is DN15-DN200, the sensor isSS304 or SS316 and lined with PFA. With tri-clamp, the magnetic flow meter can be installed and torn down easilyto clear, it meet the strict requirements of food-processing and pharmaceutical industries.
Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s

Liner of compact liquid flow meter is SS316L standard, HC, Ti, Tan and PT-IR are optional, mag flow meter is mainly used to measure conductive liquid, mag flowmeter has compact and remote structurer. our magnetic flow meter have been approved CE-LVD, CE-EMC, ATEX, NSF, tec. it can mag flowmeter is calibrationed 5 points.
Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s

Remote type magnetic flow meter is recommended for large size.

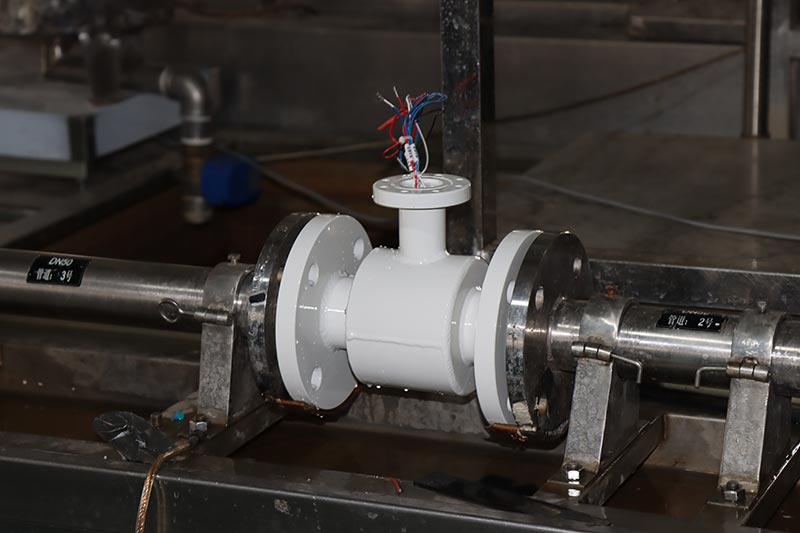

inline magnetic flow meter is calibrated by standard mass method by high accuracy calibration equipment. standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

Electromagnetic water meter is composed of sensor and transducer.
Based on Faraday’s law of electromagnetic induction, it is used to measure the volume flow rate of conductive liquid with
conductivity greater than 5 S/cm. It is an inductive instrument for measuring the volume flow rate of conductive medium.
1. A variety of electrodes are available
2. High definition LCD display, easy to understand and operate.
3. Rotatable Screen
4.ANSI, DIN, JIS flange standards.
5. OEM, ODM, all customization are supported.

Q&T calibration equipment for liquid flow meter is DN3-DN3000, standard accuracy is 0.5%, 0.2% is optional. Calibration method of electromagnetic flow meter: non-contact measurement method. That is, the external ultrasonic flowmeter is clamped on the pipe of the measured flowmeter. By comparing the cumulative flow error of the two flowmeters.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Protection Grade: IP65 std, IP68 optional for remote
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Easy Setup
Minimal Straight Pipe
Forward or Reverse flow and Total
IP65,IP67 ,IP68 Rated (optional)
Virtually No Pressure Loss

electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and wastewater, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry, etc.
When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Electromagnetic flowmeter is a commonly used pipeline measuring instrument, which can not only provide flow velocity measurement parameters but also output output results. At present, electromagnetic flowmeters have been widely used in flow velocity measurement in my country’s dredging industry..

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

insertion electromagnetic flow meter is used to measure the flow of conductive liquids. It is available for use in pipes ranging in size from DN100 to DN3000, insertion magnetic flowmeter can configure thread or flange ball valve to be hot-tapped, which allows sensor to be installed and retracted from process piping without shutting down the process.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

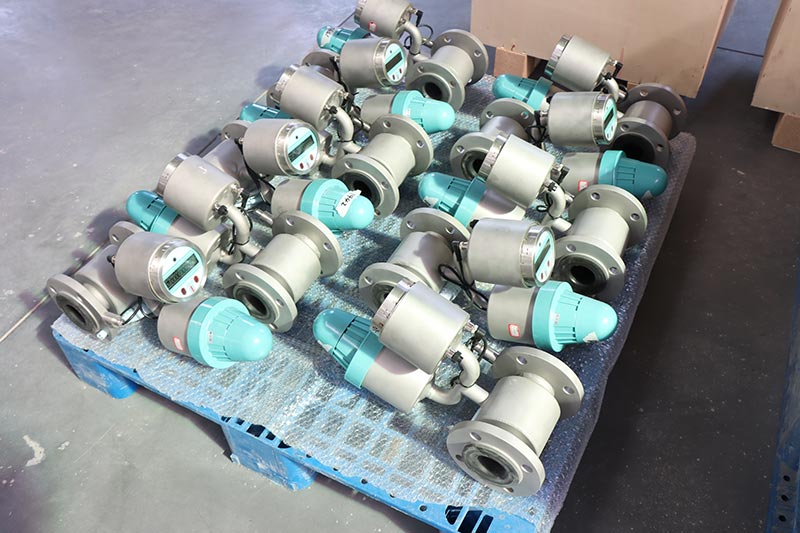

Battery powered magnetic flowmeter satisfy water fee calculation with high accuracy, battery water meter is widely used in the workplace without power supply, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Magnetic flow meter battery satisfy urban water supply to ensure accurate water fee calculation,magnetic flowmeter battery is specially used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Q&T Instrument has ISO/IEC 17025:2016 CNAS Approved Test Bench for ¡À0.2% Accuracy.

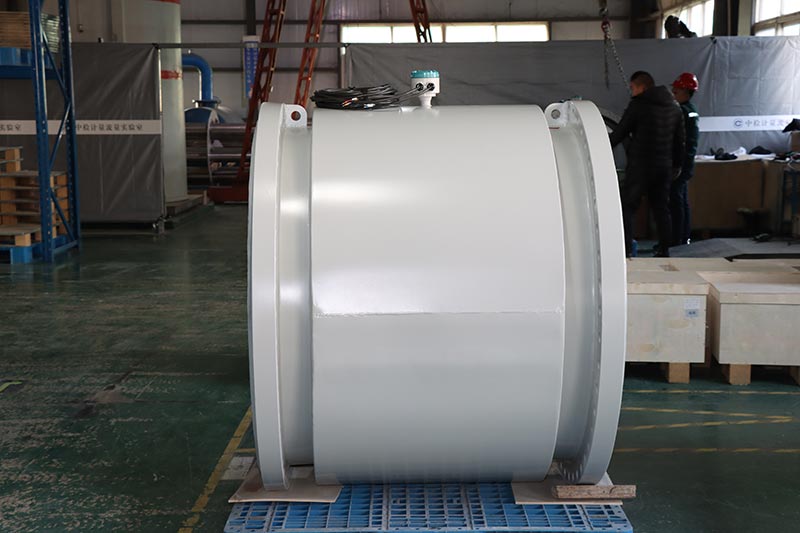

inline magnetic flow meter is calibrated on ¡À0.2% calibration device, so accuracy of electromagnetic flowmeter can be up to ¡À0.2%. the magnetic flow meter is configured 4~20 mA, pulse and RS485 modbus

QTLD flow meter is used to measure conductive liquids, we supply the competitive peice and ensure the quality,delivery time and after sale serivce. Q&T instrument is OEM and ODM manufacturer with more than 17 years production experience. have strictly quality control.
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000

Irrigation System Batch Control Flow Meter Water Electromagnetic Flowmeter is widely used because less obstruction, cost-effective and accurate measurement. Electromagnetic flow meter don’t have any moving parts to wear down, reducing the need for maintenance or replacement. We offer this digital water flow meter with a range of liners,electrodes, and sizes, which can meet various conductive liquids.

Specifications:
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

The measuring channel of the electromagnetic flowmeter is the lubricating straight pipe of the block flow detection piece. Because it is not easy to block, it can measure the liquid-solid phase fluid containing solid particles or fibers, such as pulp, coal water slurry, mineral pulp, mud and sewage, etc..

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

inline magnetic flow meter also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. Only the pulsation frequency is much lower than the excitation frequency. The meter output is essentially linear. It is easy to choose the type of material in contact with the fluid, which can be used for aggressive fluids.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

electromagnetic water meter can be used to measure the volume flow of conductive fluid in pipeline. It is applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and wastewater, etc.
Electromagnetic water meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

DC3.6V powered electromagnetic flow meter is an ideal solution for nearly any water manager, 3.6V battery meter eliminates the need for AC/DC power connection. Size: DN10-DN2000; Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V, Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Alarm: Upper limit alarm / lower limit alarm

communication of magnetic flow meter is RS485, HART, Profibus DP and PA. Measurement of magnetic flowmeter is independent of fluid density, viscosity, temperature, pressure, and conductivity. the pipe is PVC, so we configure grounding rings to have better grounding to protect the electromagnetic flow meter.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Self-diagnosis fault alarm
GSM data infinitely transmitted
LCD display cumulative flow£¬instanta-
neous flow£¬ flow rate,flow percentage,etc.

“Q&T series Electromagnetic flowmeters for the accurate flow measurement of any conductive fluid, Ideally suited to water and waste water treatment plants, mining and general industry.Q&T series Electromagnetic flowmeters transmitter display guides operator with menu prompts during configuration.
Comprehensive output options, Include multiple analogue, relay, digital and serial outputs.”
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

hot products Partial Filled Pipe Flow Meter Sewage flow meters for water treatment is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

Battery electromagnetic flow meter satisfy urban water supply to ensure accurate water fee calculation,battery mag flow meter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

mag flowmeter is mainly used to measure conductive liquids, liner can be PTFE or rubber, Q&T Instrument has large stock fro varous flanges for different flow meters, like magnetic fflow meter, turbine flow meter, thermal mass flow meter, etc.goods can be delivered with in 4 days for regular types. we’re ISO9001:2008 manufacturer, all water flow meters can be calibrated according to CNAS ISO 17025.

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

Battery powered electromagnetic flow meter enjoys IP68 protection, Battery powered magnetic flow meter workable under water, flow meter can add external 12-24 V DC power supply. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) :-10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP): -10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional), HART(Optional), GPRS/GSM (Optional);

Various liner materials are available:PTFE, FEP, PFA, F46, Rubber
Wide rang in communication:RS485, Modbus, ,GPRS
IP68 protection class is for remote type

Q&T has sufficient flow meter stock,guarantee fast delivery of DC3.6V powered magnetic flow meter,battery mag meter is ideal when connect to the place power supply is difficult or expensive. Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Ambient Temperature: -20¡æ~+ 60¡æ; Ambient Humidity: 5-100% RH (relative humidity); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA/pulse (optional);

Q&T have 8 sets calibration device for liquids electromagnetic flow meter and 5 sets calibration equipments for gas. our calibration lab has been approved CNAS ISO/IEC 17025:2017, mag flowmeter can be delivered within 6 days for DN3-DN3000.

Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
