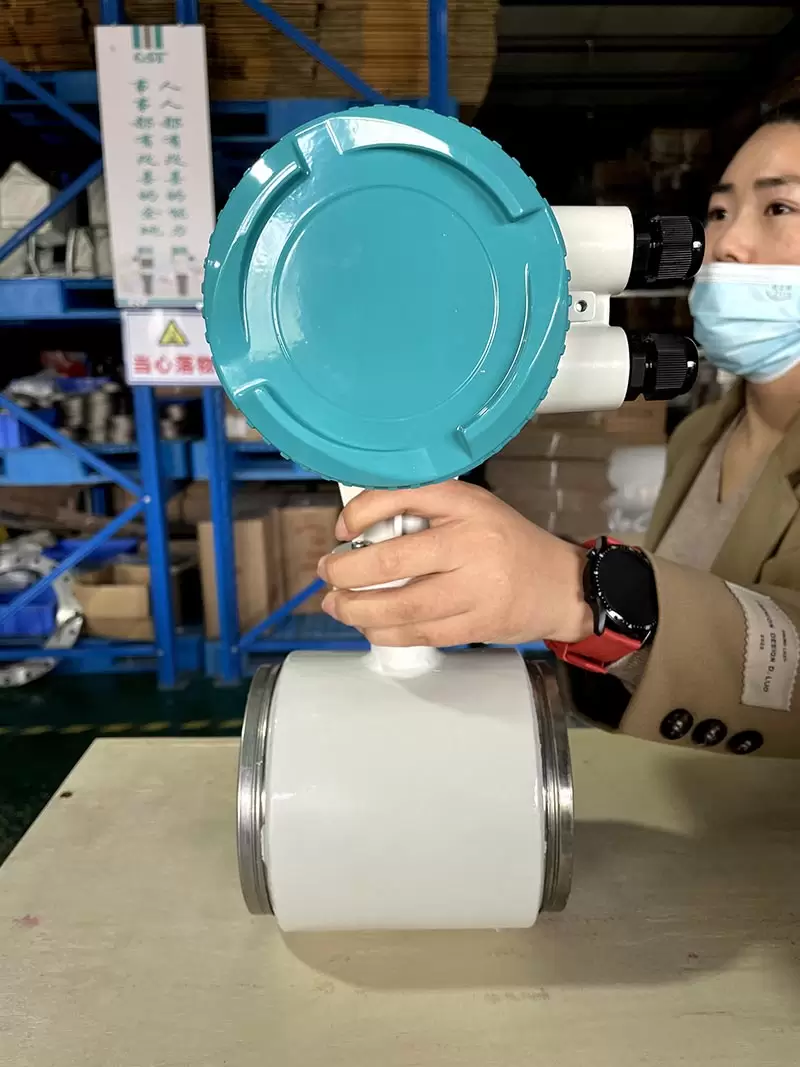

6 Inch Water Flow Meter Magnetic Flowmeter Sewage Flow Meter

Partial Filled Pipe Flow Meter Sewage cement electronic ip68 flow meter is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

RS485 0.05-10m/s Partial Filled Pipe Flow Meter digital remote valve control water meter is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

Electromagnetic water meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries
1) Measurement is not affected by the variation of flow density, viscosity, temperature, pressure.
2) High accuracy measurement is guaranteed according to the linear measurement principle.
3) No moving in the pipe, no pressure-loss and lower requirement for straight pipeline.

Accuracy of mag flow meter is ¡À0.5% standard, ¡À0.2% is optional, magmeter is calibrated on ¡À0.2% accuracy calibration device. A flow transmitter energizes the coils which creates a magnetic field in the tube. A conductive fluid moving through this field generates an induced voltage at two electrodes in the tube. waste water flow meter can be compact type and remote type, standard cable length is 10m and max cable length is 120m.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s

Magnetic heat meter is composed by transmitter, sensor and PT1000 temperature sensor, which can monitor flow and energy of hot water and cold water, standard configuration of flange and sensor shell is carbon steel, SS304 and SS316L are optional. the electromagnetic BTU meter has wide range of nominal diameters (DN3-3000), Independent of pressure, temperature, density and viscosity, magnetic energy meter is built-in grounding electrodes
Accuracy: ¡À0.5%
Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic

The electromagnetic flowmeter is suitable for measuring almost all electrically conductive liquids, as well as the flow measurement of mud, paste and mud. The premise is that the measured medium must have at least some minimum conductivity. Temperature, pressure, viscosity and density have no effect on the measurement results.
It can also be used to measure corrosive media as long as the proper pipe lining material and electrode material are selected. Solid particles in the medium will not affect the measurement results.
The flow sensor and the intelligent converter form a complete flow meter integrally or separately.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Electromagnetic water meter is manufactured with the present up-to-data technology for electromagnetic flowmeter. It has the following characteristics:
The measurement is independent of density, viscosity, temperature, pressure and the change of conductivity of the fluid;

Size DN50 to DN300 pipe line
Suitable for all conductive liquids
No moving parts
Near zero pressure drop
Wide range in electrode: SS316, Ti, HC, HB, Ta, Pt
Multi-choice in flange: DIN, GB, ANSI, JIS, EN, etc

Lithium battery can provide power for themeter up to 6 years (options for rechar-gable battery group with UPS).
lntuitive configuration and accessibility with an easy-to-use Local OperatorInterface.
A variety of electrodes and linings are available for a variety of complex working conditions.
It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.

DC3.6V powered mag flowmeter’s accuracy is affected by disturbances such as pumps,tees.elbows,valves, etc.,Install the battery powered mag meter in pipes with enough straight line. Size: DN10-DN2000; Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

Q&T series magnetic flow meters offer a high quality, economic and solid state solution for measuring flow in areas where flow sensors with moving parts cannot be applied. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

Q&T series magneric flow meter is one of the most flexible and unversally applicable flow measurement
systems available. It is volumtric flow meter which does not have any moving parts and is ideal for
waste water applications or any dirty liquid which is conductive or waste based. Q&T series Magnetic flow meter
no positive flow parts in the measuring tube, no pressure loss, and lower requirements for straight pipe sections

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

Electromagnetic flow meter detect flow by Faraday’s Law of induction. Size can be 1/8″~120″, magnetic flowmeter can be calibrated according to CNAS ISO/IEC 17025:2017, which is recongition by ILAC-MAR.
Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic

GSM/GPRS remote monitoring management software system can query, count, analyze and display the water usage of each measuring point in the form of graphs or curves.

Battery operated magnetic flow meter satisfy water fee calculation with high accuracy, battery flow meter is widely used in applications without power supply, can work with solar power supply. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Forward and reverse flow measurement.
Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
Multiple output communication (pulse, GPRS, RS485),

Q&T series electromagnetic flow meter sensor adopts non-uniform magnetic field technology and special magnetic circuit structure, the magnetic field is stable and reliable, and the volume is greatly reduced, the weight is reduced, and the flowmeter is characterized by small flow.

Size: 1/8″-120″
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

electromagnetic BTU meter can be integrated type and split type, standard cable length is 10m. Pt1000 temerature sensor is configured. Magnetic energy meter is composed by transmitter, sensor and PT1000 temperature sensor, which can monitor flow and energy of hot water and cold water.

Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

This electromagnetic wastewater flow meter has the features of no moving parts, which reduced the maintenance and repair with an obstructionless design. Alignment rings are available to install easily. and this magnetic flow meter Support data record / bluetooth / wireless communication

Specifications:
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis
Support data record / bluetooth / wireless communication

With simple structure ,the flow meter is of high reliability without lining in the
measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between
DN2 and DN600.
Measurement is independent of fluid density ,viscosity ,humidity ,temperature
pressure and conductivity.

Battery powered electromagnetic flow meter satisfy urban water supply to ensure accurate water fee calculation, Battery powered magnetic flow meter is widely used in no power supply region. Structure: Integral,remote,submersible,ex-proof; Ambient Humidity: 5-100%RH (relative humidity); Protection Class: IP65(Standard), IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard),1.5W(with DC24V);

Magnetic flow meter is designed to measure the volume flow of conductive liquids in closed pipelines, it is comprised of a transmitter and magnetic flow sensor that together measure flow. It is high accuracy and reliability. It is a good choice for digital water flow meter.

Specifications:
Accuracy: 0.5%, optional 0.2%
Signal output: 4~20 mA, pulse
Power supply: 220VAC, 24VDC
Body material: Carbon steel
Liner material: PTFE, FEP, PFA, CR, hard rubber, PU, FLS
Electrode material: SUS316L, HC, HB, Ti, Tan, Pt
Connection: Flange, thread, wafer, tri-clamp, union
Protection grade:IP65 / IP 68(optional)
Meddium temperature: -20~120℃
Certification:CE,ATEX

magnetic flow meter (mag meter, electromagnetic flow meter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.
If the magnetic field direction were constant, electrochemical and other effects at the electrodes would make the potential difference difficult to distinguish from the fluid flow induced potential difference. To show this in modern magnetic flowmeters, the magnetic field is constantly reversed, cancelling out the electrochemical potential difference, which does not change direction with the magnetic field. This however prevents the use of permanent magnets for magnetic flowmeters.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Stainless still magmeter is mainly used to measure beverage. liner can be PTFE or rubber, waste water flow meter can add pt1000 temeprature sensor to be magnetic btu meter to monitor flow and btu of hot water and cold water, can calibrated on liquid test bench, standard accuracy is ¡À0.5%
Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Various liner materials are available:PTFE, FEP, PFA, F46, Rubber
Wide rang in communication:RS485, Modbus, ,GPRS
IP68 protection class is for remote type

Size DN50 to DN300 pipe line
Suitable for all conductive liquids
No moving parts
Near zero pressure drop
Wide range in electrode: SS316, Ti, HC, HB, Ta, Pt
Multi-choice in flange: DIN, GB, ANSI, JIS, EN, etc

12VDC power supply magnetic flowmeter digital type water flow meters
consists of sensors and converters in two parts. The product is based on Faraday’s law of electromagnetic induction used to measure the conductance greater than 20 μS / cm volume of conductive liquid flow, In addition to measuring the general volume of conductive liquid flow, but also can be used to measure strong acid, alkali and other strong corrosive liquids and mud, pulp, pulp and other liquid-solid two-phase suspension of uniform volume flow.

waste water flow meter is calibrated by MT methoud water flow standard calibration device, mass method, comparison method and pulse method can be used, standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional. magnetic flow meter is calibration equipment 5 points flow meter, mass method, comparison method and pulse method can be used

Repeatability: 0.17%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

The diameter of the electromagnetic flowmeter is wider than other types of flowmeters, DN3-DN3000. It can measure the forward and reverse bidirectional flow, as well as the pulsating flow. Only the pulsation frequency is much lower than the excitation frequency. The meter output is essentially linear. It is easy to choose the type of material in contact with the fluid, which can be used for aggressive fluids.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

high accuracy and won’t be influenced by downstream or DC water or blocking partial filled pipe flow meter an accurate mini ultrasonic level meter for its liquid level measurement then the flow meter will record
the liquid level and use this parameter to measure liquid flow. This ultrasonic level meter’s blind area is very
small and its accuracy can reach ¡À1mm.
