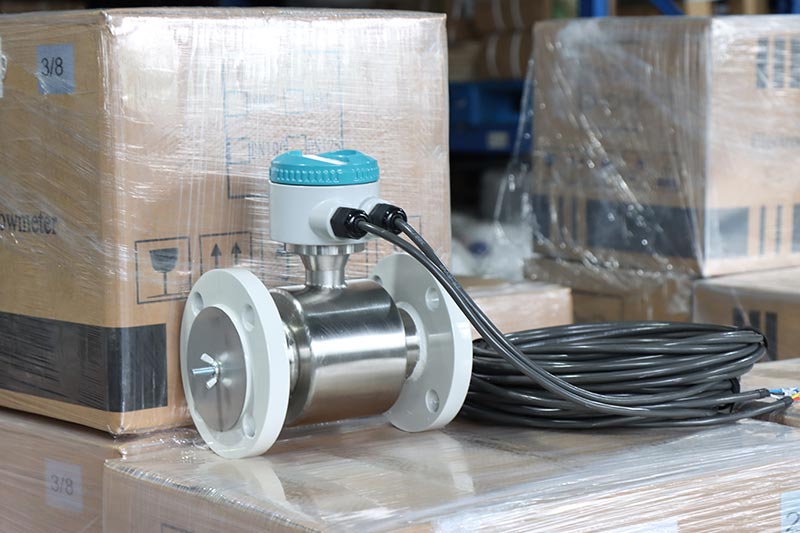

RS485 Electromagnetic Flow Meter Sensor Magnetic Flowmeter

Forward and reverse flow measurement.
Measure pulp and slurry, water and wastewater, food and beverage, acid and alkaline.
Multiple output communication (pulse, GPRS, RS485),

magnetic flow meter (mag meter, electromagnetic flow meter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.
If the magnetic field direction were constant, electrochemical and other effects at the electrodes would make the potential difference difficult to distinguish from the fluid flow induced potential difference. To show this in modern magnetic flowmeters, the magnetic field is constantly reversed, cancelling out the electrochemical potential difference, which does not change direction with the magnetic field. This however prevents the use of permanent magnets for magnetic flowmeters.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

Battery power mag flow meter enjoy good accuracy with ¡À0.5%, 3.6V battery meter provides with 3-5 years continuous battery operation, flowmeter easy easy maintain in operation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Ambient Temperature: -20¡æ~+60¡æ; Ambient Humidity: 5-100%RH (relative humidity);

Lithium battery can provide power for themeter up to 6 years (options for rechar-gable battery group with UPS).
lntuitive configuration and accessibility with an easy-to-use Local OperatorInterface.
A variety of electrodes and linings are available for a variety of complex working conditions.
It is unaffected by changes in temperature, density, viscosity, concentration and electrical conductivity.

3.6V battery powered magnetic flow meter also could measure & display temperature and pressure, humanized human-computer interaction interface, battery mag meter enjoy easy operation. Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE, Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

GSM/GPRS remote monitoring management software system can query, count, analyze and display the water usage of each measuring point in the form of graphs or curves, so that users can conveniently manage the water used in each measuring point.

magnetic flowmeter is volumetric flow meter, it does not have any moving parts and is ideal for wastewater applications or any dirty liquid that is conductive or water-based. magmeter manage critical flow applications to improve accuracy, decrease system maintenance and meet the demands of challenging liquid conditions.

Accuracy: ¡À1.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Probe: ABS, PVC
Output Signal: 4~20 mA, Pulse

Inline flow meter is widely used for conductive liquids which conductivity is high than 20 ¦ÌS/cm, size is DN3-DN3000, which can be used various pipes. No moving parts, no pressure loss and require very less maintenance.
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Size DN50 to DN300 pipe line
Suitable for all conductive liquids
No moving parts
Near zero pressure drop
Wide range in electrode: SS316, Ti, HC, HB, Ta, Pt
Multi-choice in flange: DIN, GB, ANSI, JIS, EN, etc

With simple structure ,the flow meter is of high reliability without lining in the measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between DN50 and DN300.

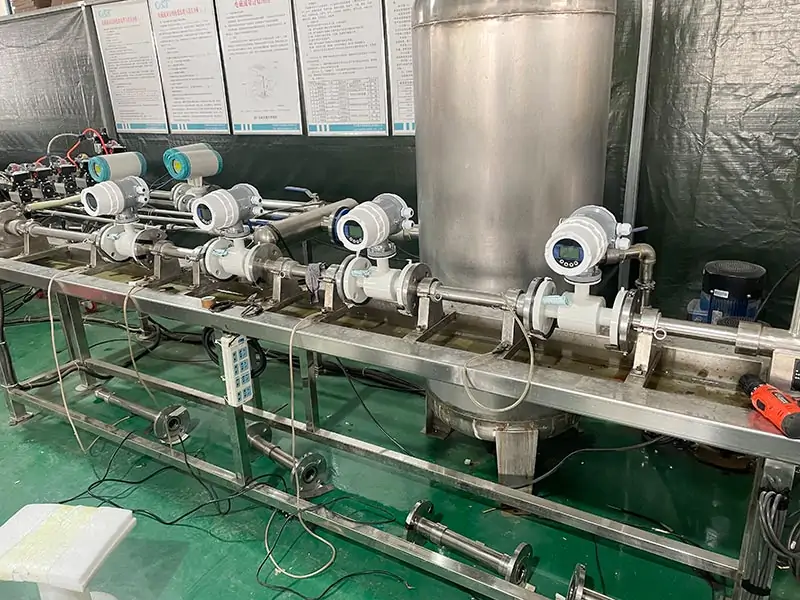

Signal of electromagnetic flowmeter is 4~20 mA, pulse and RS485, but we also configure GPRS for remote monitoring on platform. 5 points are calibrated. electromagnetic flowmeter is calibrated by Mass Method liquid calibration equipment, Q&T Instrument has large stock fro varous flanges for different flow meters, like magnetic fflow meter, turbine flow meter, thermal mass flow meter, etc.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Electromagnetic flow meter is a volumetric flow meter that does not have any moving parts. It is ideal for wastewater applications or any dirty liquid which is conductive or water based. Magnetic flow meters are also ideal for applications where low-pressure drop and low maintenance are required.
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Q&T’s magnetic flowmeter battery each set will have well calibrated before leave factory, mag flow meter battery adopt pulse calibration, with weighing method, guarantee the 0.5% accuracy. Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Ambient Temperature: -20¡æ~+ 60¡æ; Ambient Humidity: 5-100% RH (relative humidity); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA/pulse (optional);

DC3.6V powered electromagnetic flowmeter could reach IP68 protection, DC3.6V powered magnetic flowmeter could put under water for long time with IP68 protection. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM (Optional);

3.6V battery powered electromagnetic flow meter is ideal in process measurement and control, survey, leakage detection, etc.Insertion battery mag meters specially installed in any large size pipeline. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa(2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B, Hastelloy C, Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

magmeter is calibrated on ¡À0.2% accuracy liquid calibration device, electromagnetic flowmeter is calibrationed 5 points. our calibration lab has been approved CNAS ISO/IEC 17025:2017. magmeter is calibrated by MT methoud water flow standard calibration device, mass method, comparison method and pulse method can be used, standard accuracy is ¡À0.5%, ¡À0.2% accuracy is optional.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

magnetic flowmeter will be tested by pressure equipment. QTLD waste water flow meter is calibrated by ISO/IEC 17025:2016 CNAS Approved liquid flow meter is installed in the chemical plant to measure waste water, the pipe is PVC, so we configure grounding rings to have better grounding to protect the electromagnetic flow meter.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Mag flow meter battery can be used in process measurement and control, leak detection, etc.Insertion battery magnetic flow meter usually for large diameter pipeline save cost. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner:PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane, PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional);

No moving parts, virtually no pressure loss;
Corrosion protection,abrasion resistant;
High accuracy,stable performance;
High level of anti-vibration and anti-jamming,wide measuring dimensions.
Multi-output interface: Pulse, outputs,RS485 communication.

electromagnetic flowmeter can be used to measure the volume flow of conductive fluid in a closed pipeline. It is widely applied in the flow measurement and control in the fields of chemical and petroleum industry, metallurgy industry, water and wastewater, agriculture and irrigation, paper making, food and beverage industry and pharmaceutical industry, etc.
When the conductive fluid flows through the measuring tube of the sensor, the voltage signal in direct proportion to the average flow velocity of the fluid will be inducted on the electrodes. The signal is amplified and treated by the transmitter to realize various display functions.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

1. Instrument display and output functions are complete, it can display instantaneous flow, flow rate, cumulative flow and other data, and has RS485 interface (optional);
2. With GSM and GPRS wireless data remote transmission function (optional);
3. It has the functions of timing, counting and clocking out of power

QTLD electromagnetic flow meter has different types, insertion / tri-clamp / wafer / thread / mini / partially-filled, etc. is configured with PTFE and SS316L electrodes, with compact or remote type structurer, electromagnetic flow meter is used to measure drinking water or waste water. liquid flow meter inluding inserted flow and compact electromagnetic flow meter, vortex flow meter, metal tube rotameter, ultrasonic flow meter.

Size: 1/8″-120″
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

magnetic flowmeter is unaffected by changes in fluid density, viscosity, temperature, pressure and conductivity. There are no obstructing flow parts in the measuring tube, no pressure loss, and lower requirements for straight pipe sections. Unique adaptability to slurry measurement. structurer is compact type and remote type with 10m cable standard and 120m max. hard rubber or Neoprene liner of magnetic flowmeter is configured for drinking water

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm

Electromagnetic water meter is high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits.

Easy Setup
Minimal Straight Pipe
Forward or Reverse flow and Total
IP65,IP67 ,IP68 Rated (optional)
Virtually No Pressure Loss

The magnetic flowmeter is an instrument that can measure water-based or conductive volumetric flow including pulp & paper slurries and black liquor. It is also used in detecting flaws and impurities, which is expected to provide avenues for market growth over the next seven years. In addition, the development and updation of certain standard norms for impurities may instigate manufacturers to develop better instruments, thereby contributing towards future growth. Advancement in electromagnetic technology is expected to make the product better and more accurate, which may further increase demand.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

1. Can be used for flow measurement of open non-full pipe (round pipe, rectangular pipe or other special-shaped pipe);
2. Can be used for continuous measurement of municipal rainwater, wastewater, sewage discharge and irrigation water pipelines;

Magmeter is volumetric flow meter that measure the flow when conductive liquids move through a magnetic field. mag flowmeters have function of high and low alarm, empty pipe alarm, exciting alarm and self-diagnosis.
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse

Electromagnetic water meter is suitable for pipes with diameters of 50 mm to 300mm. They are based on Faraday¡¯s law of Electromagnetic Induction. The meterfeatures flanged construction and is available with choice of Liner and Electrode materials.
1) DN 6 to DN2000 covers a wide range of pipe size.
2) A variety of liners and electrodes are available to satisfy different flow characteristic.
3) Measurement stability and reducing power consumption.
4) Implementing 16 bits MCU, providing high integration and accuracy;

Electromagnetic water meter ‘s measurement is advanced. The faster the flow of the fluid, the greater the voltage signal generated. Electrode sensors located on the flow tube walls pick up the voltage signal and send it to the electronic transmitter,which processes the signal to determine liquid flow.
Electromagnetic water meter GSM/GPRS remote monitoring management topology diagram 4. This system introduces more humanized management such as data backup, SIM card cost statistics and so on.
