Batch control system magnetic flow meter water flowmeter

Remote communication with this magnetic flow meter battery can be achieved via a base-station-type radio communication network system.Battery powered mag flowmeter battery enjoy 3-5 years life. Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Protection Class: IP65(Standard),IP68(Optional for remote type); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional),HART(Optional),GPRS/GSM(Optional); Power Supply: Battery powered 3.6V,Battery powered 3.6V +DC24V(Optional); Power Consumption: 0.5W(Standard), 1.5W(with DC24V); Explosion Proof: ATEX

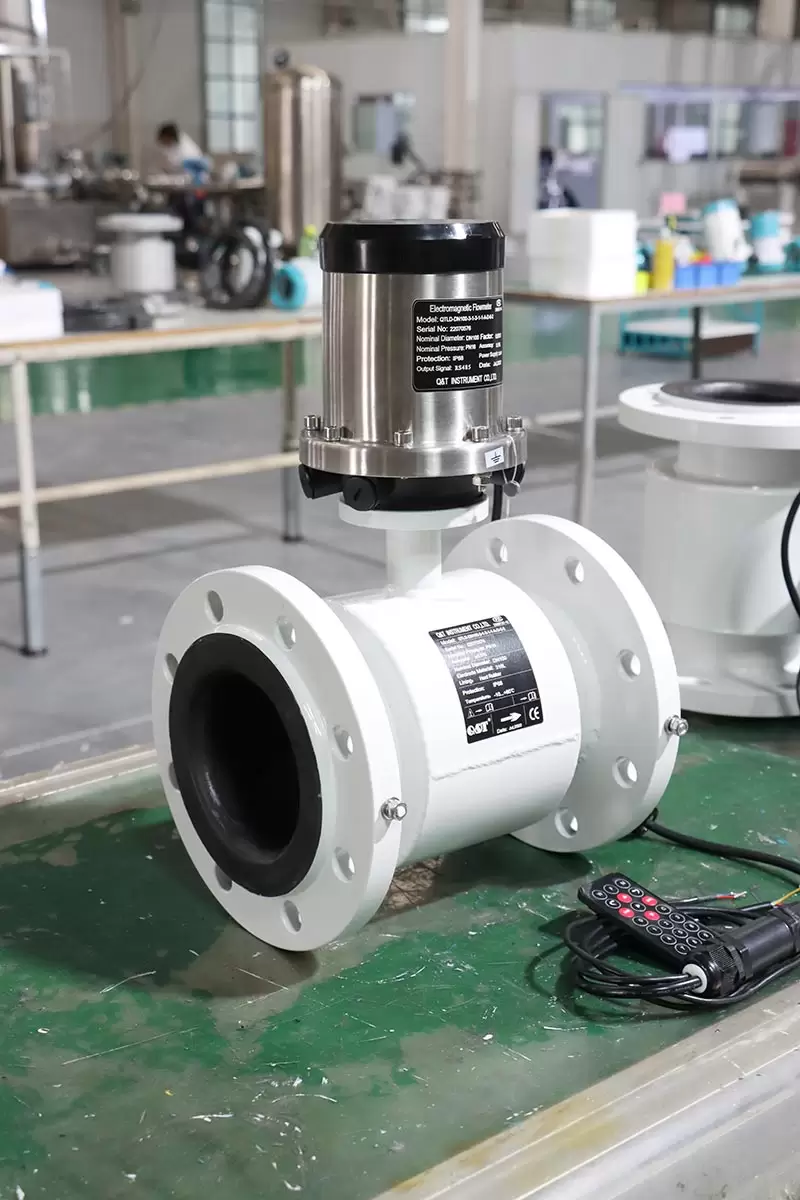

Q&T has sufficient flow meter stock,could guarantee fast delivery of 3.6V battery powered electromagnetic flow meter,battery meter is ideal for working site without power. Accuracy: ¡À0.5% (Standard),¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP,Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Ambient Temperature: -20¡æ~+ 60¡æ; Ambient Humidity: 5-100% RH (relative humidity); Process Connection: Flange(Standard),Wafer,Thread,Tri-clamp etc(optional); Output Signal: 4-20mA/pulse (optional);

Measuring Range :0~12m/s ;
Conductive Ratio of the Medium :5¦Ìs/cm
Medium Temperature : -10¡æ~55¡æ ;
Power Supplied : 3.6V DC in-built Lithium ion battery power supplied , continually working for more than three years.

magnetic flowmeter can be customized color and logo,Q&T Instrument is OEM for many European and Amercian brands. 2 years warranty. our main products are electromagnetic flow meter, ultrasonic flowmeter, vortex flow meters, turbine flowmeters, thermal mass flow meters, variable area flow meters, which widely used for water and gas.
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Q&T Instrument has large stock for varous flanges for different electromagnetic flowmeter, like DIN, ANSI, JIS, etc. PTFE, neoprene liner and other liners are optional, Liner of mag flowmeter has been approved NSF or FDA certificate. it can be used to measure driing water. it has function of high and low alarm, empty alarm, excitation alarm, etc.

Size: DN3-DN3000
Accuracy: ¡À0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Q&T series electromagnetic flow meter has a backlight and a wide temperature-ranged Chinese LCD display. With fully practical function, visual display, easy operation, it saves troubles for on-site installation operation and maintenance. Q&T series electromagnetic flow meter can be widely used in industrial fields such as petroleum, chemical, metallurgy, water supply and drainage, steel, coal, paper, food, textile, environmental protection and other municipal administration, water conservancy construction field etc.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.1~15 m/s
Conductivity: > 5 μS/cm, demineralized water > 20 µS/cm
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

GSM/GPRS remote monitoring management software system can query, count, analyze and display the water usage of each measuring point in the form of graphs or curves.

magnetic flowmeter is packed by wooden case or carbone box with foam to protect flow metes won’t be damaged in transit, magnetic water meter can be delivered within 6 days for DN12-DN300, electromagnetic water meter is widely used because less obstruction, cost-effective and accurate measurement. Magnetic flowmeter don’t have any moving parts to wear down, reducing the need for maintenance or replacement.
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

With simple structure ,the flow meter is of high reliability without lining in the
measuring pipe .
The wide range of the nominal bore is suitable for all the pipe size between
DN2 and DN600.
Measurement is independent of fluid density ,viscosity ,humidity ,temperature
pressure and conductivity.

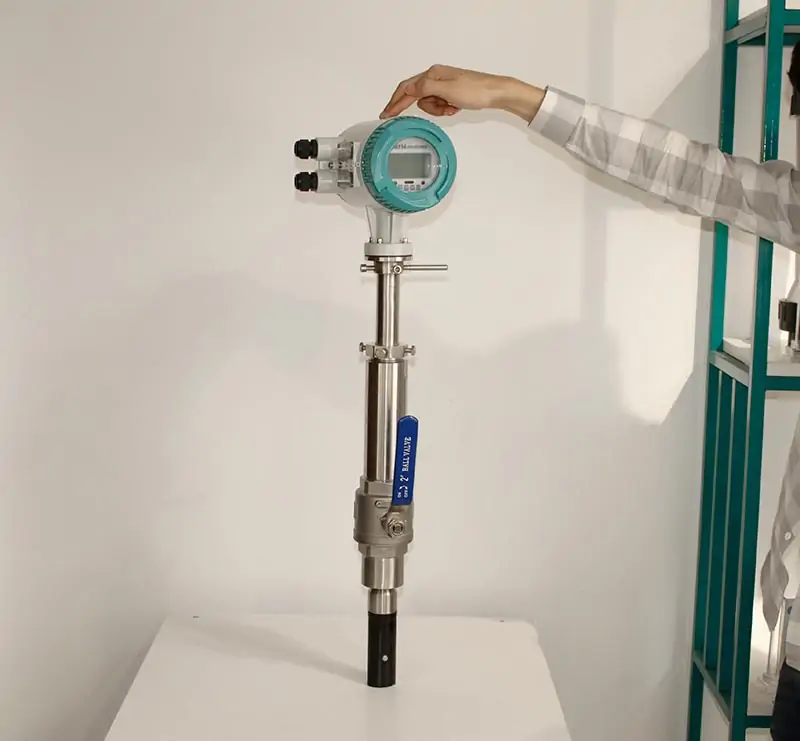

Q&T insertion magnetic flow meter with no moving parts is designed to measure the flow velocity of conductive liquids in large diameter pipes. The insertion type is cost-effective compared with in line magmeters for large diameter pipes.

Specifications:
Size: 4″-120″
Accuracy: ±1.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Velocity: 0.5~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

magmeter has a simple structure, and there are no moving components in the accurate measurement pipeline, and no other throttle valve components that hinder the fluidity of the liquid. Therefore it is not possible to cause any additional pressure damage when the liquid is.

Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery

Battery powered electromagnetic flow meter enjoys IP68 protection, Battery powered magnetic flow meter workable under water, flow meter can add external 12-24 V DC power supply. Size: DN10-DN2000; Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) :-10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP): -10¡æ~+160¡æ; Protection Class: IP65(Standard),IP68(Optional for remote type); Output Signal: 4-20mA / pulse (optional); Communication: RS485(Optional), HART(Optional), GPRS/GSM (Optional);

magmeter measure the volume flow, flow rate, and temperature with very precise measurement results for optimized processes. our calibration lab has been approved CNAS ISO/IEC 17025:2017. Q&T Instrument has large stock fro varous flanges for different water flow meters, like magnetic fflow meter, turbine flow meter, oval gear flow meter, etc.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Battery power mag flow meter enjoy good accuracy with ¡À0.5%, 3.6V battery meter provides with 3-5 years continuous battery operation, flowmeter easy easy maintain in operation. Nominal Pressure: 0.6-1.6MPa (2.5Mpa / 4.0Mpa /6.4Mpa…Max 42Mpa); Accuracy: ¡À0.5% (Standard), ¡À0.3% or ¡À0.2% (Optional); Liner: PTFE,Neoprene,Hard Rubber,EPDM,FEP, Polyurethane,PFA; Electrode: SUS316L,Hastelloy B,Hastelloy C, Titanium,Tantalum,Platinum-iridium; Structure: Integral,remote,submersible,ex-proof; Medium Temperature: -20¡æ~+60¡æ (integral type), Remote type(neoprene,Hard rubber,Polyurethane, EPDM) -10¡æ~+80¡æ; Remote type (PTFE / PFA / FEP)-10¡æ~+160¡æ; Ambient Temperature: -20¡æ~+60¡æ; Ambient Humidity: 5-100%RH (relative humidity);

hot products Partial Filled Pipe Flow Meter Sewage flow meters for water treatment is composed of converter, flow sensor and level sensor. The user only needs to
enter the diameter of pipe, the non-full pipe flowmeter will automatically calculate the flow rate, and automatically
display the instantaneous flow, total flow, velocity, height, etc. It can measure liquid volume min 10% of full pipe. It is
especially suitable for the needs of municipal rainwater, waste water, sewage discharge and irrigation

LCD display with multiple FlowUnits Selectable ‘Flow Only’¡®Flow + Pressure”Flow +Temperature.
Digital Signal Processing,Stablemeasurement,High Accuracy,Strong Anti-interference Capability

Various liner materials are available:PTFE, FEP, PFA, F46, Rubber
Wide rang in communication:RS485, Modbus, ,GPRS
IP68 protection class is for remote type

Q&T have 8 sets test bench for liquids and 5 sets calibration equipments for gas. our calibration lab has been approved CNAS ISO/IEC 17025:2017. we use mass method, pulse or comparison method to calibrate, each flow meter have calibration certificate together with goods. 5 points are calibrated for magnetic flowmeter.
Conductivity: > 5 ¦ÌS/cm, demineralized water > 20 ¦ÌS/cm
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
Function: High and low alarm, exciting alarm, empty pipe alarm, self-diagnosis

magnetic flowmeter will be tested by pressure equipment. QTLD waste water flow meter is calibrated by ISO/IEC 17025:2016 CNAS Approved liquid flow meter is installed in the chemical plant to measure waste water, the pipe is PVC, so we configure grounding rings to have better grounding to protect the electromagnetic flow meter.

Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Size: DN3-DN3000
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304

Easy Setup
Minimal Straight Pipe
Forward or Reverse flow and Total
IP65,IP67 ,IP68 Rated (optional)
Virtually No Pressure Loss

mag flowmeter can be compact with IP65 protection grade, remote with IP68 protection grade, inline magnetic flow meter can be submerged in the water or buried underground, standard cable length is 10m, 5 points are calibrated according to ISO 17025. We offer flowmeters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.

Size: 1/8″-120″
Electrode: SUS316L, Hastelloy B, Hastelloy C
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

Liner of tri-clamp mag flow meter is PFA, which is approved NSF and FDA, sensor material is SS304 or SS316, it’s mainly used to measure beverage, like milk, beer, juice, etc. inline magnetic flowmeter can be compact or remote type with 10m cable. electromagnetic flowmeter is volumetric flow meter that measure the flow when conductive liquids move through a magnetic field. mag flowmeters have function of high and low alarm, empty pipe alarm, exciting alarm and self-diagnosis.
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote

Application: Outdoor,underground.Especially
Without power supply places.
Battery Powered: 3.6V lithium battery
Communication Interface:RS485
Wireless Communication:GSM¡¢GPRS¡¢CDMAProtection:IP68

When the water consumption of the measuring point is abnormal or the battery of the field flow meter is insufficient, the system can send an alarm message, and the alarm information can be directly sent to the mobile phone of the user designated by the user.

Electromagnetic water meter is using 16-bit embedded microprocessor, fast operation speed, high accuracy, programmable frequency low frequency rectangular wave excitation, improve the stability of flow measurement, and low power consumption. Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, flow measurement range up to R400.
1.Sensor suitable:DN3~DN2800
2. Range of rate:0.01m/s~12m/s
3. Accuracy:Level 0.25
4. Low-frequency square wave or High-frequency Excitation
Excitation frequency:3.125Hz,6.25Hz,
12.5Hz,25Hz
5. Excitation Current:100mA ~500mA,Default 160mA or 250mA

Remote magmeter don’t have any moving parts, simple structure, light weight, electromagnetic flow meters are intelligent equipment, integrated magnetic flow meter is easy to install and operate.
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS

QTWG series electromagnetic flow meter is designed for demanding water and wastewater applications, and for use in hazardous areas and under harsh conditions. The flow meter features dual-compartment housing, up to three input/outputs, and accurate bidirectional measurement independent of pressure, density, temperature and viscosity.

Size:DN3-3000mm
Material:Carbon Steel SS304 S316
Dual Power:24V/220V
Nominal Pressure: 0.6-1.6Mpa(Max 42Mpa)
Accuracy: +/-0.5%(Standard)0.2% (Optional)
Liner: PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode Material:SUS316L,Hastelloy B,Hastelloy C,Titanium,Tantalum,Platinum-iridium
Output Signal: 4-20mA/Pulse
Ambient Temperature:-20~+60deg C

magnetic flow meter (mag meter, electromagnetic flow meter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.
If the magnetic field direction were constant, electrochemical and other effects at the electrodes would make the potential difference difficult to distinguish from the fluid flow induced potential difference. To show this in modern magnetic flowmeters, the magnetic field is constantly reversed, cancelling out the electrochemical potential difference, which does not change direction with the magnetic field. This however prevents the use of permanent magnets for magnetic flowmeters.
Size: 1/8″-120″
Accuracy: ±0.5%
Electrode: SUS316L, Hastelloy B, Hastelloy C
Structure: compact, remote
Liner: PTFE, PFA, Polyurethane, Neoprene, Hard Rubber, Ceramic
Output Signal: 4~20 mA, Pulse
Communication: RS485, HART, PROFIBUS
Protection Grade: IP65 std, IP68 optional for remote
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Flange: ANSI, DIN, JIS, etc.

The Magnetic Flow Meter has bidirectional measuring system and is installed with three totalizers: forward total volume, reverse total volume and total difference; This digital water flow meter can display forward flow and reverse flow volume, and has multiple outputs: current, pulse, digital communication Modbus, HART etc

Specifications:
Accuracy: 0.20%，0.10%
Medium Temperature: -50…200℃
Nominal pressure: 0…4.0MPa
Material : Measuring tube SS316L; Housing: SS304
Process Connection: Flange, Tri-clamp Connection, Thread
Power supply: 24V DC±5% or 220V AC ± 10% 50Hz
Working condition: Ambient temperature: – 20~60℃
Relative humidity: ≤95%
Protection Grade: IP67
Instrument display: mass flow, volume flow, density, temperature

Pressure of QTLD water flow emter can be ANSI 150#, 300#, 600#, 900#, etc. all waste water flow meter will be tested by pressure equipment. QTLD water flow meter is calibrated by ISO/IEC 17025:2016 CNAS Approved Test Bench. it can be powered by AC/DC/3.6V lithium battery. Inline flow meter is widely used for conductive liquids which conductivity is high than 20 ¦ÌS/cm, size is DN3-DN3000, which can be used various pipes.
Size: 1/8″-120″
Accuracy: ¡À0.5%
Structure: compact, remote
Velocity: 0.1~15 m/s
Power supply: 85~250 VAC, 20V~36VDC, 3.6V lithium battery
Sensor material: carbon steel (std), SS304 / SS316 (optional)
Measuring tube: SS304
