Introduction

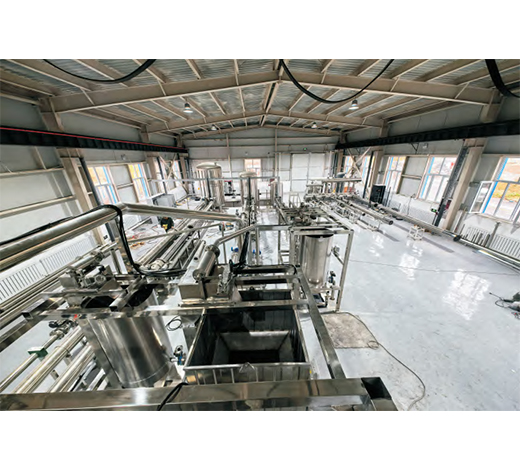

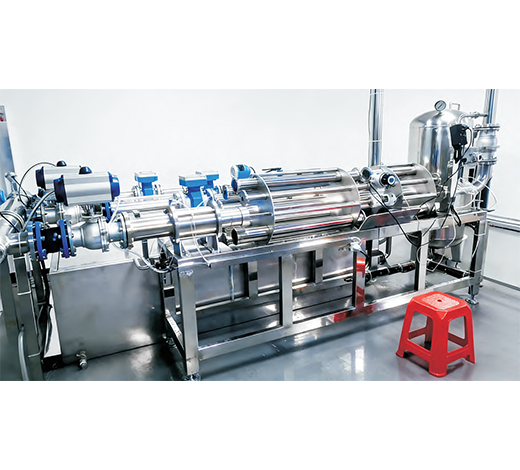

QLCS liquid calibration device, utilizing both the standard meter method and the gravimetric method, consists of a circulating water pressure stabilization system, a variable frequency speed control system, a standard meter pipeline system, a tested meter pipeline system, a flow rate adjustment system, a switching system, a weighing system, and a computer control system. The device can be used for metrological verification and calibration of electromagnetic and liquid flow meters.

Advantages

1.    Combines static gravimetric & standard meter methods (shared water source/pipeline/control system) – simple,easy to operate, efficient, cost-effective.
2.     Rational range; multiple electronic scales ensure full-range weighing accuracy >0.05%.
3.     Flow adjusted via frequency converter + manual ball valves – stable, energy-saving.
4.     Pneumatic meter clamps, electric drain valves, diverters (synchronous timing/counting) – automatic weighing, computerized data processing, calibration report generation.

Cases

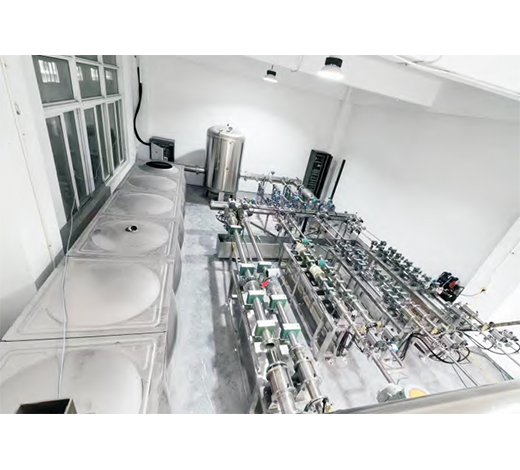

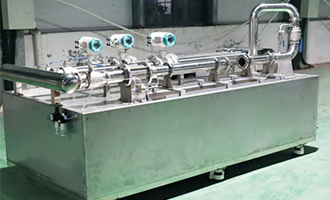

Liquid Calibration Device-1

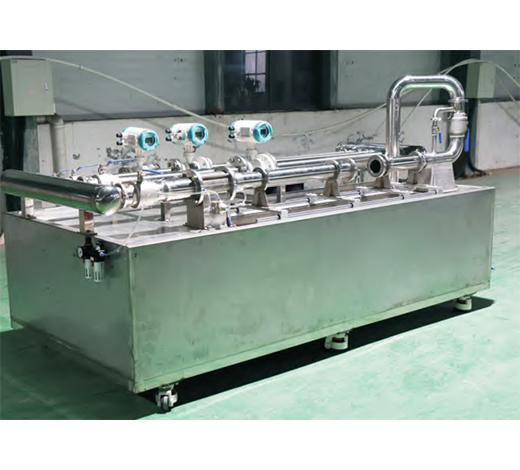

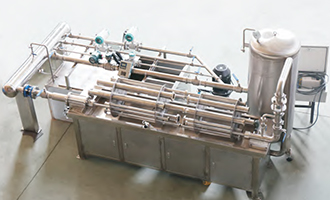

Liquid Calibration Device-2

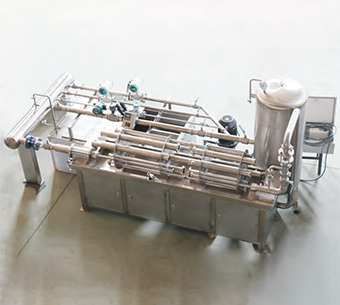

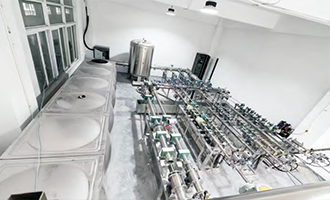

Liquid Calibration Device-3

Technical Data

Size	DN15-50	DN15-100	DN15-200	DN15-300
Calibration Method	Comparison Method + Weight Method
Standard Meter	DN15-DN25-DN50	DN100-DN50- DN32-DN15	DN150-DN80- DN32-DN15	DN200*2-DN80- DN32-DN15
Area (LxWxH) m	8x5x4	10x6x4.5	25x8x6	30x10x6.5
Comsumption	≤11KW	≤15KW	≤75KW	≤90KW
Tank(m3)	4	6	50	80
Surge Tank(m3)	0.6	1	4	5
Max Velocity(Standard)	3.5 m/s
Uncertainty	0.1%
Collect Signal	Pulse
Wetted Parts	SS304
Design Standard	lSO-4185-1980

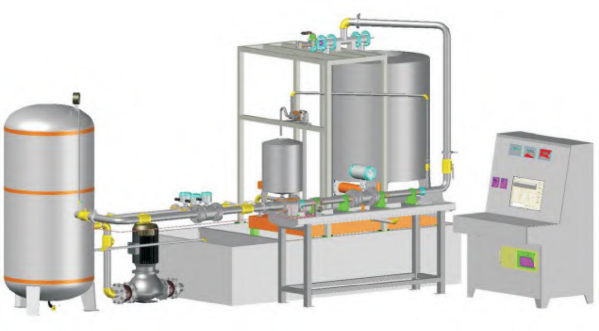

Drawing (Design according to clients' requirements)

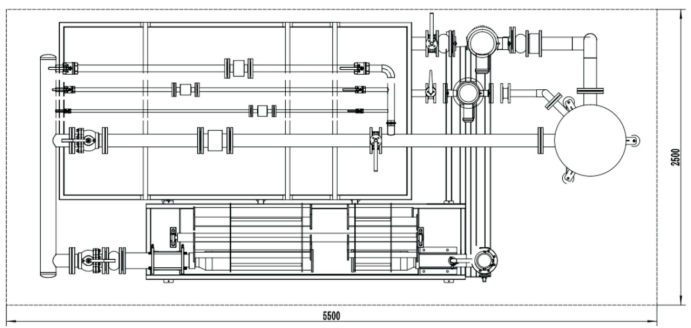

DN15-DN100 Layout

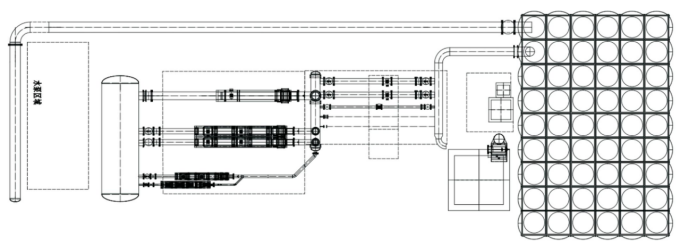

DN15-DN200 Layout

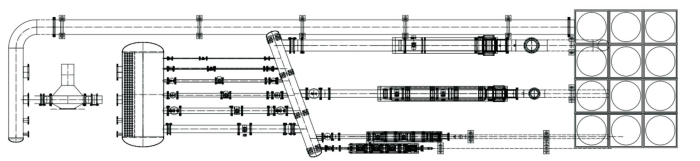

DN15-DN300 Layout

Configuration

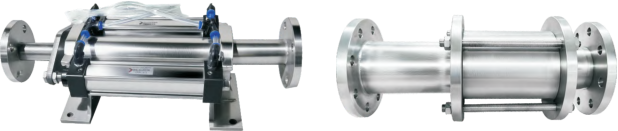

1. Clamp Meter Holder

Application:
Primarily used for securing the instruments being calibrated in liquid calibration devices. It accommodates the structural length and connection methods of different types of instruments, ensuring no media leakage during calibration.
Standard small and medium diameter instruments are driven by a pneumatic source; standard large diameter instruments are driven by a hydraulic source.
Functions and Features

Specifications/Diameter	DN15-DN2000;
Drive Type	Pneumatic, Hydraulic;
Structure	Internal Push Type, External Push Type;
Features	Flexible connection, easy installation, reliable performance.

2. Steady Flow Tank

Specifications/Model	0.3~50 m³
Material	Carbon steel, stainless steel;
Features	The tank body uses a combination of baffles, sieve plates, and sieve tubes to effectively eliminate turbulence and bubbles within the medium.
Applications	Primarily used in liquid flow standard devices to stabilize the flow state of the medium.

3. Commutator
Application:
Mainly used in static mass and static volumetric flow rate standard devices to switch the direction of medium flow.
Small and medium diameter open commutators adopt a swing nozzle structure; small and medium diameter closed commutators adopt an internal piston structure.

Functions and Features

Specifications/Diameter	DN15--DN800
Actuator Type	Pneumatic, Electric
Structure	Open, Closed
Commutation Time Difference	≤15ms
Features	Reliable performance, agile operation, and rapid response

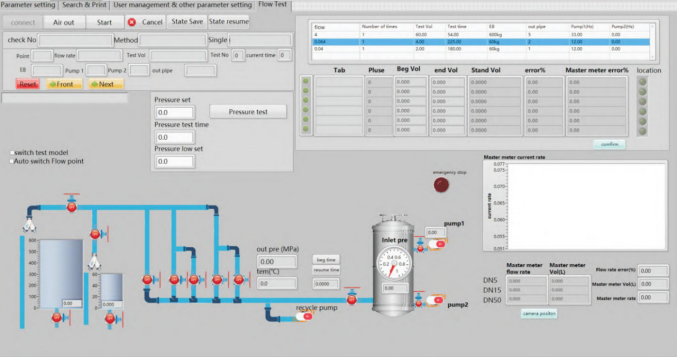

Software
